Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2000
>>
Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Connector Views
Connector Views
EBCM

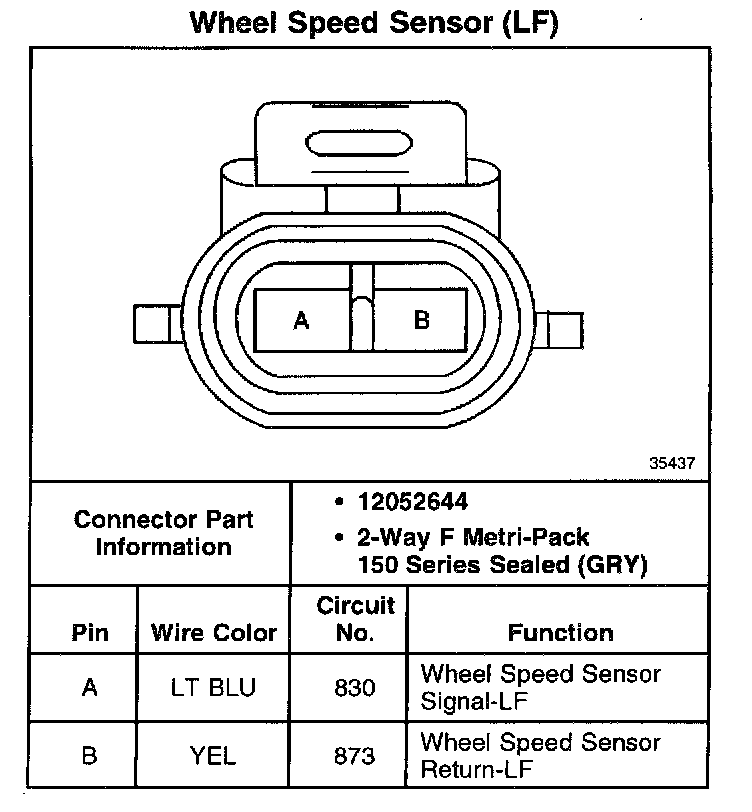

Wheel Speed Sensor
(LF)
Wheel Speed Sensor
(RF)

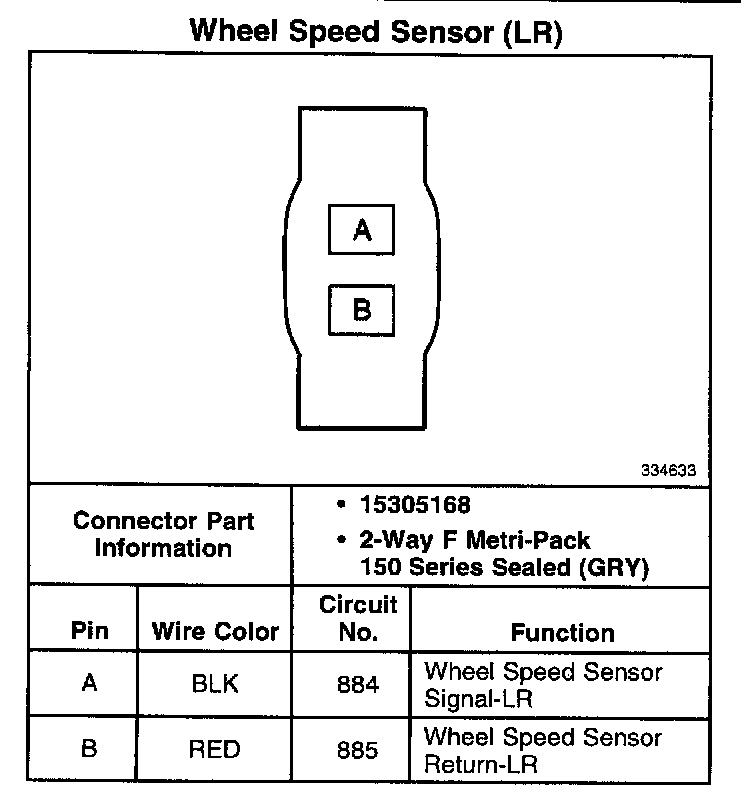

Wheel Speed Sensor
(LR)

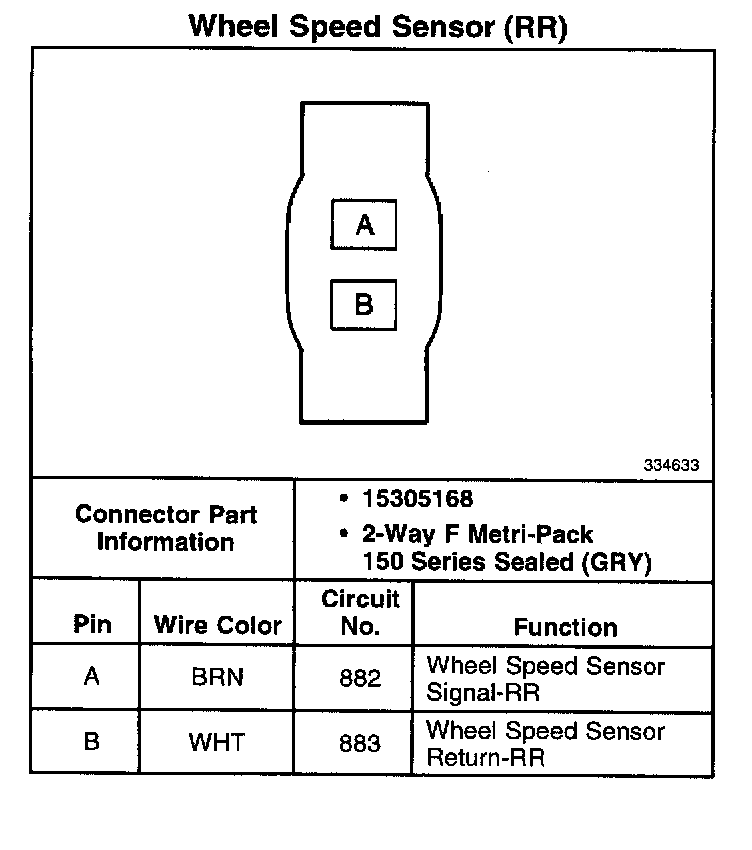

Wheel Speed Sensor
(RR)
