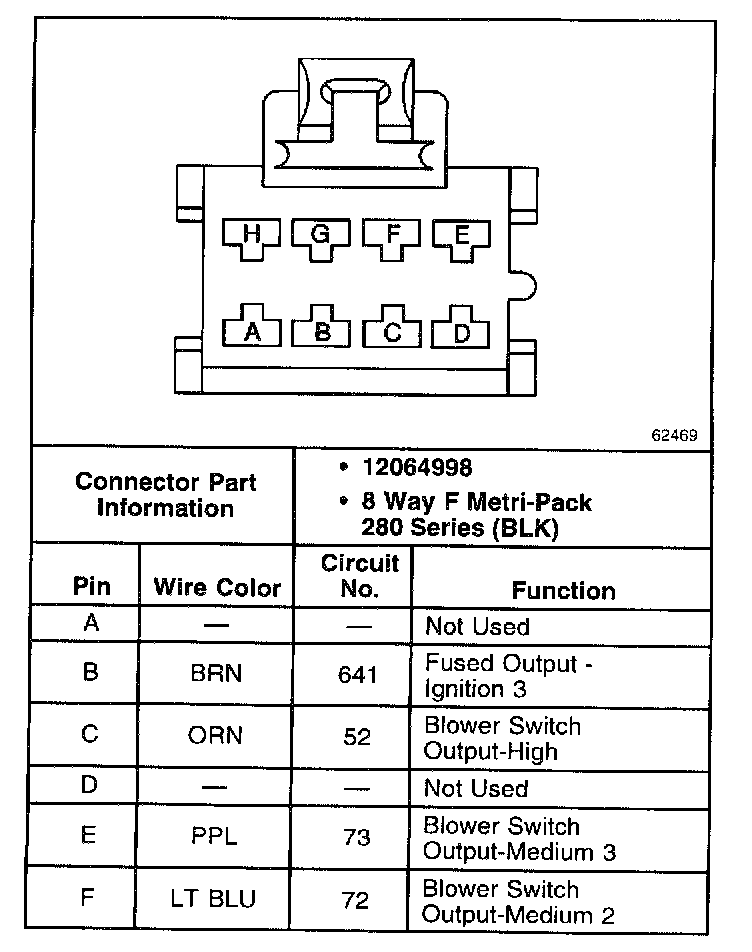

Heater A/C Control Assembly C1
Heater A/C Control Assembly C1

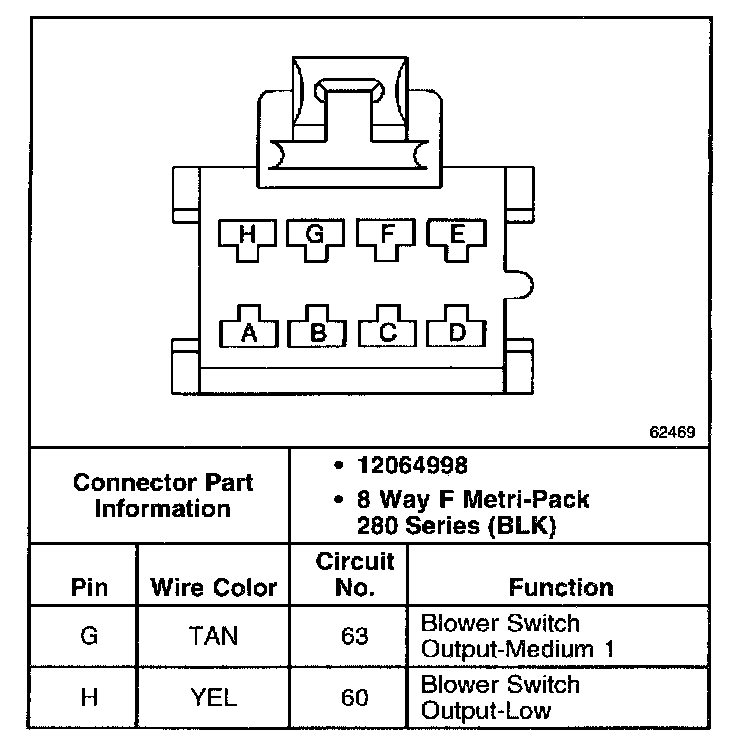

Heater A/C Control Assembly C1 (Part 2 Of 2):
Heater A/C Control Assembly C1 (Part 2 Of 2):
