Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2000
>>
Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
Cooling System

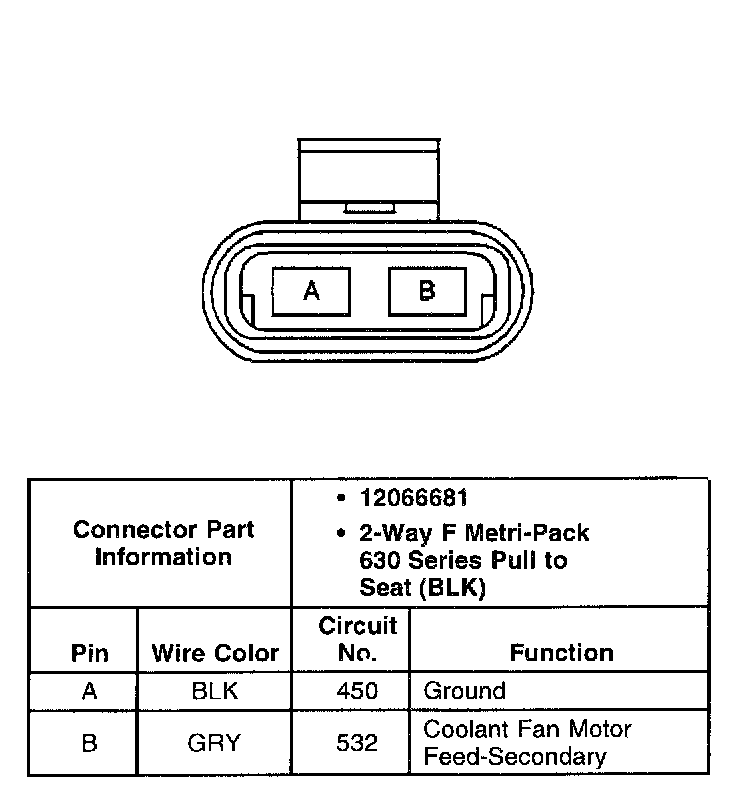

Engine Coolant Fan Motor (RH)

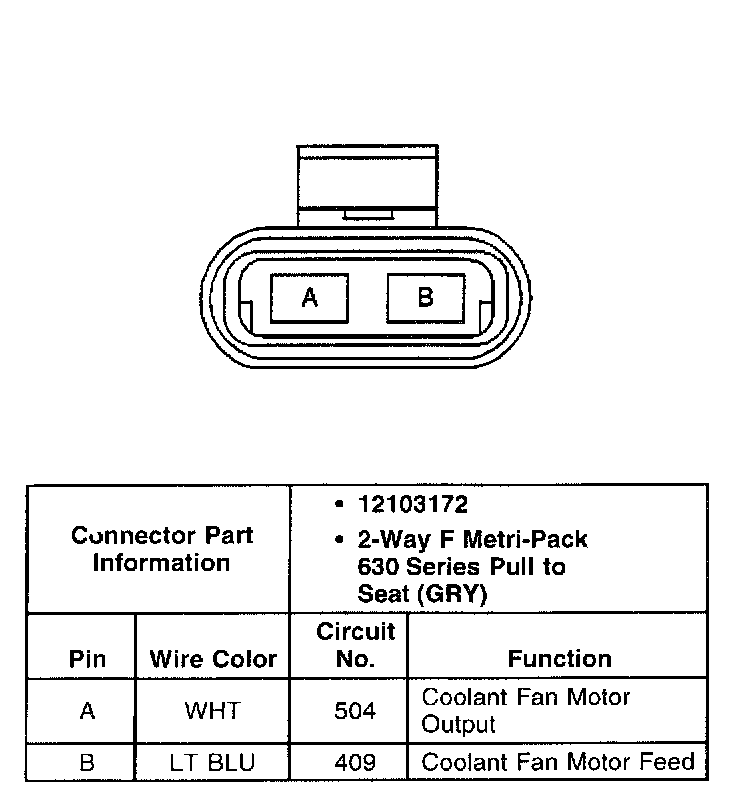

Engine Coolant Fan Motor (LH)

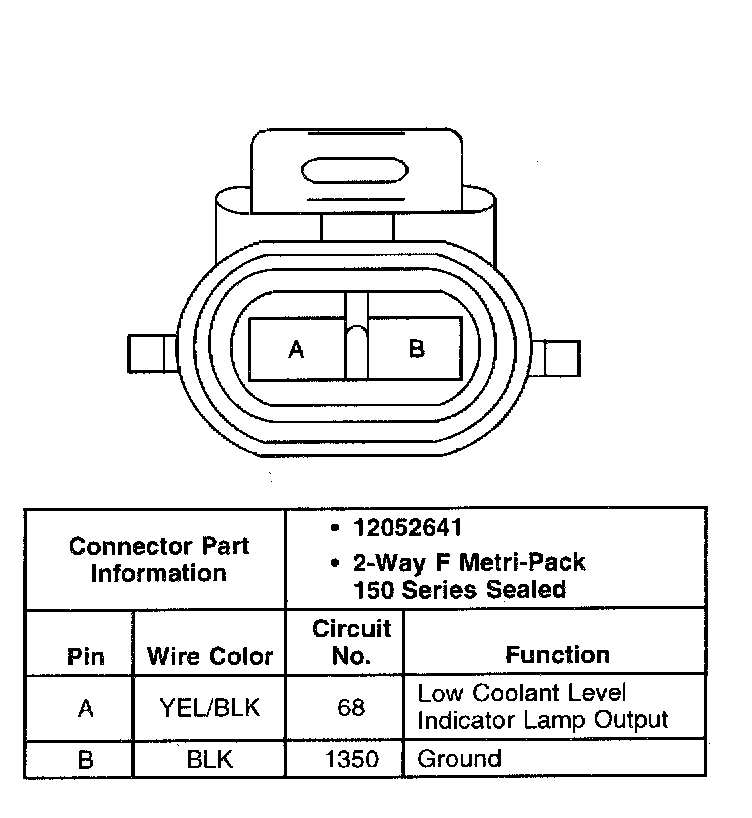

Engine Coolant Level Sensor
