Home >> Chevrolet >> 2000 >> Malibu V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> LH IP Junction Block C1

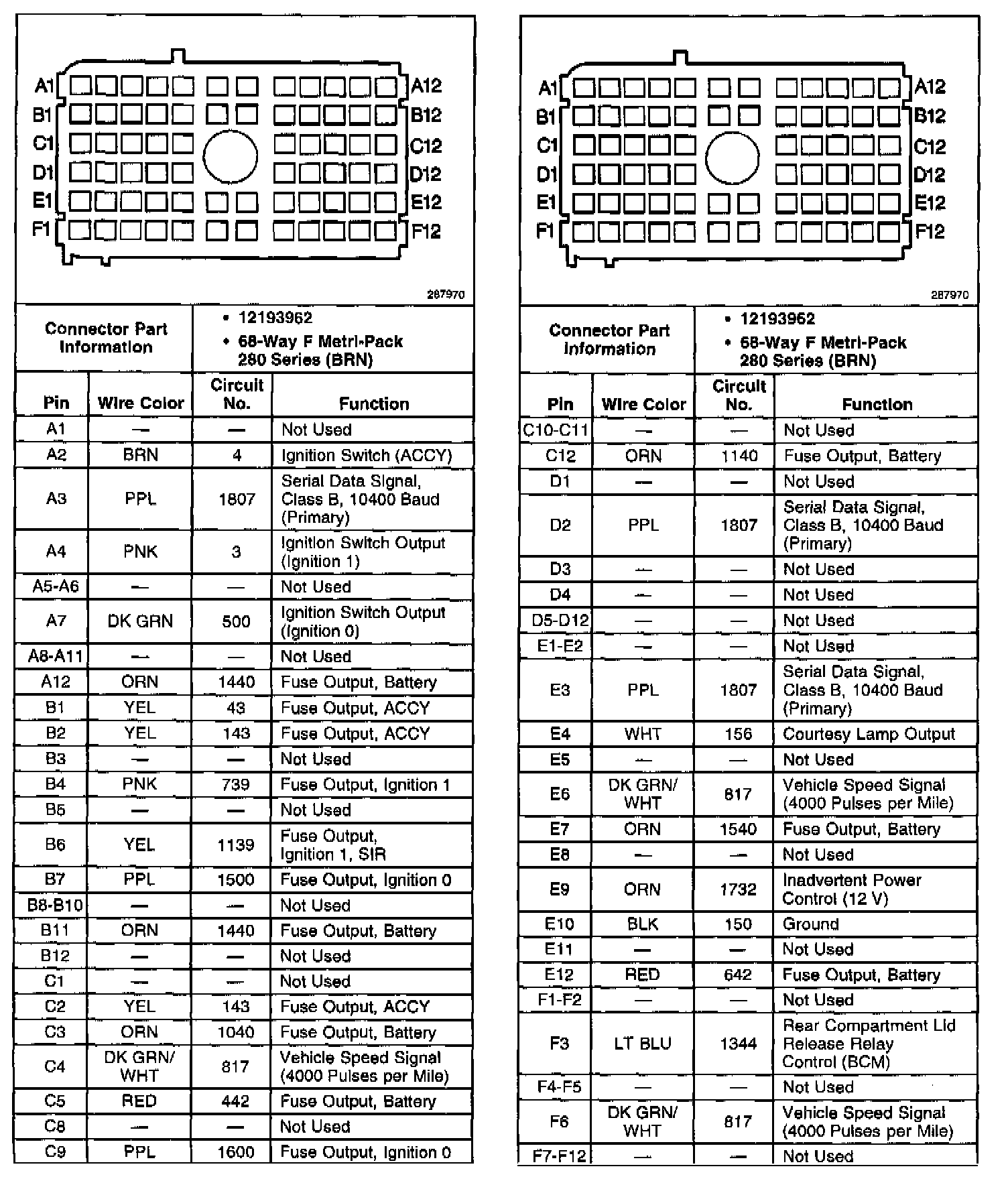

LH IP Junction Block C1

LH IP Junction Block C1:
