LH IP Junction Block C3

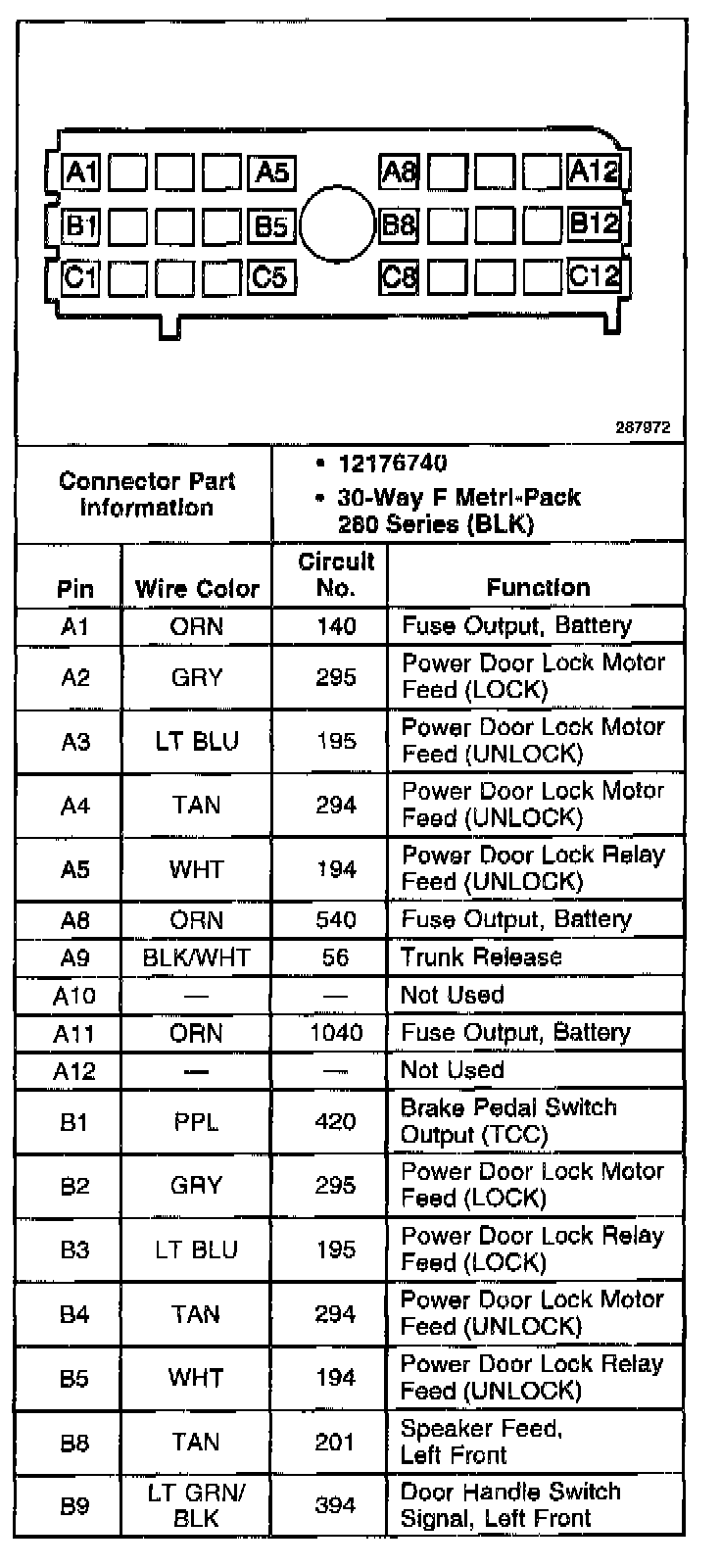

LH IP Junction Block C3 (Part 1 Of 2):

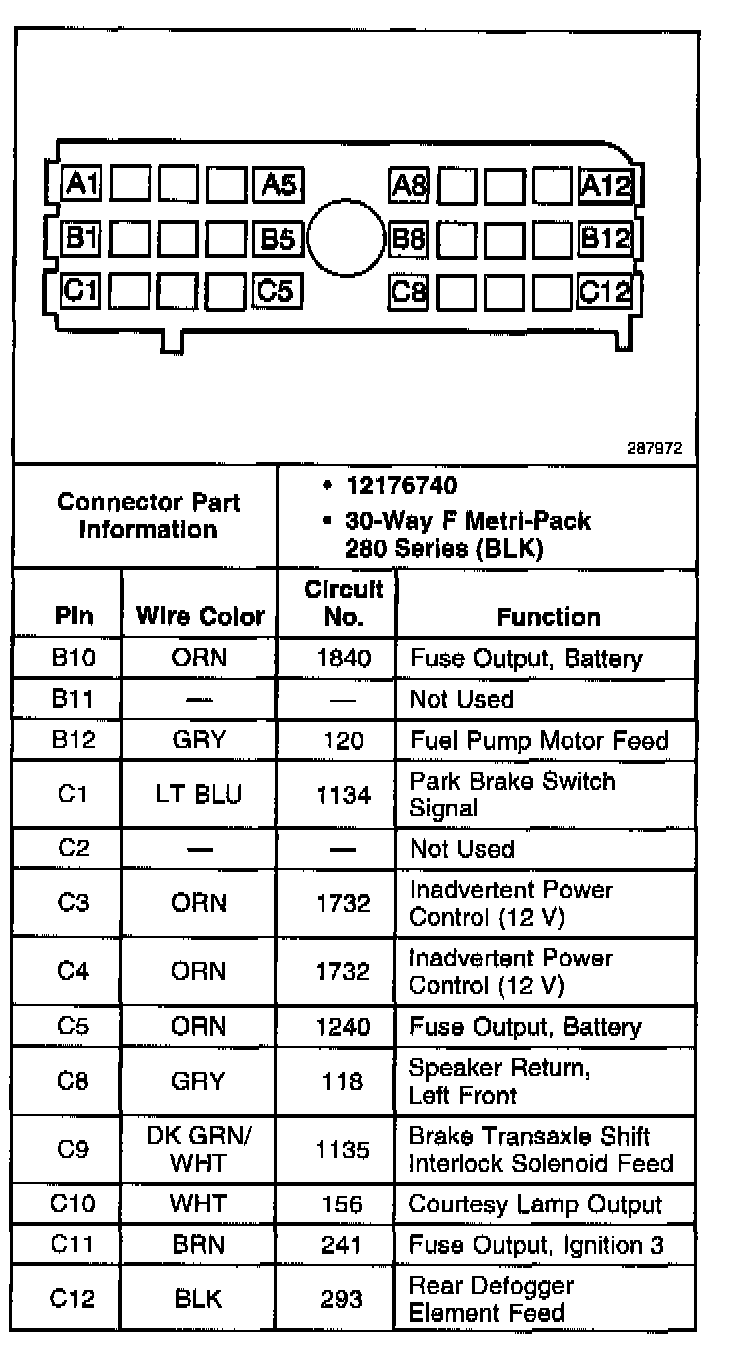

LH IP Junction Block C3 (Part 2 Of 2):
