Connector Views
>>
Fuse Block
>>

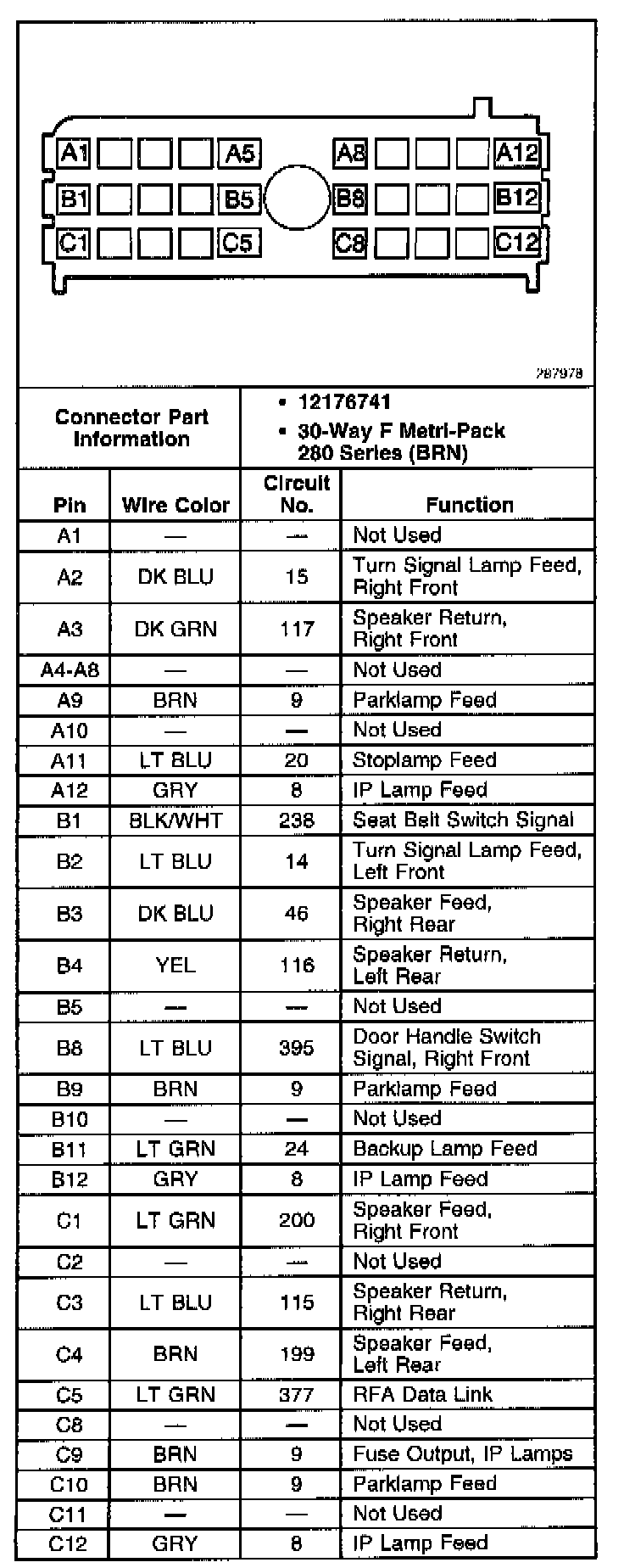

RH IP Junction Block C2
RH IP Junction Block C2
RH IP Junction Block C2:
