Underhood Junction Block C3
Underhood Junction Block C3

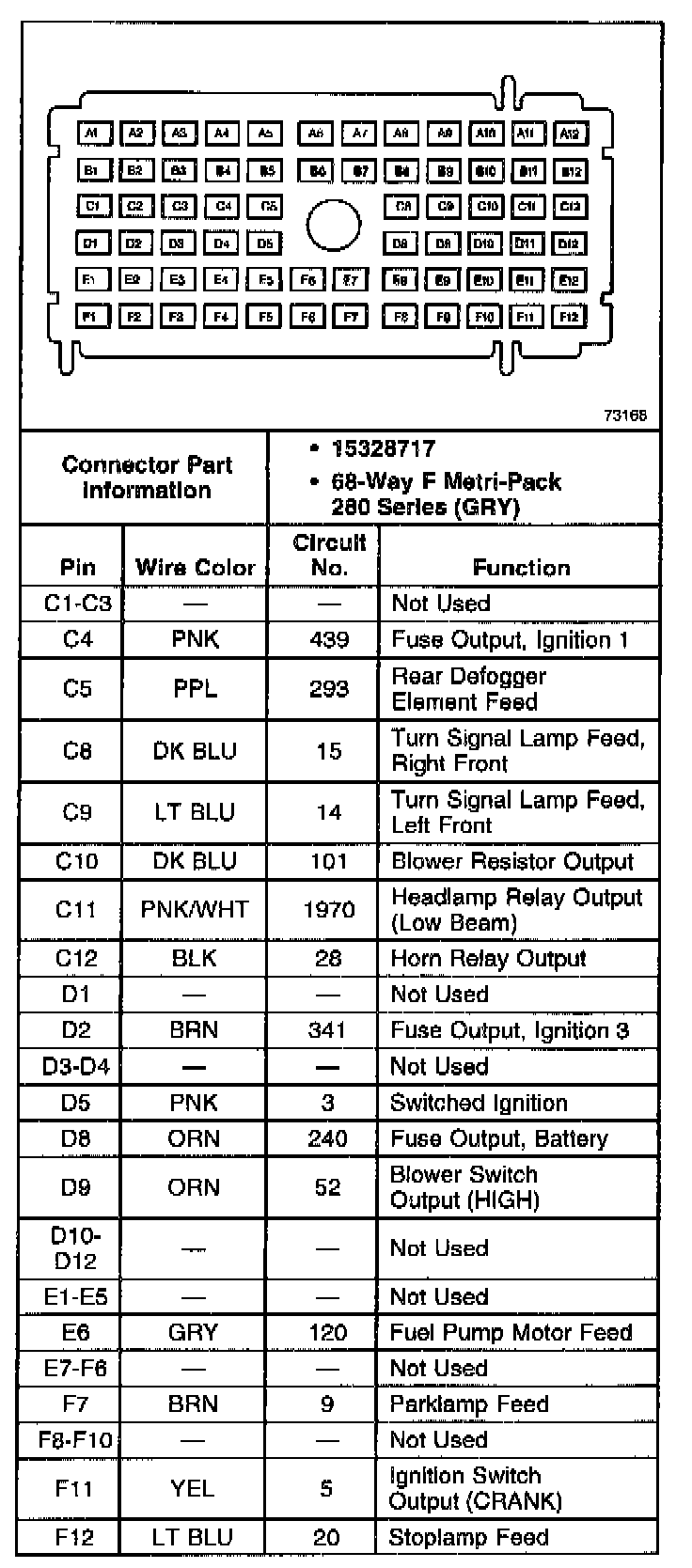

Underhood Junction Block C3 (Part 1 of 2):
Underhood Junction Block C3 (Part 2 of 2):
