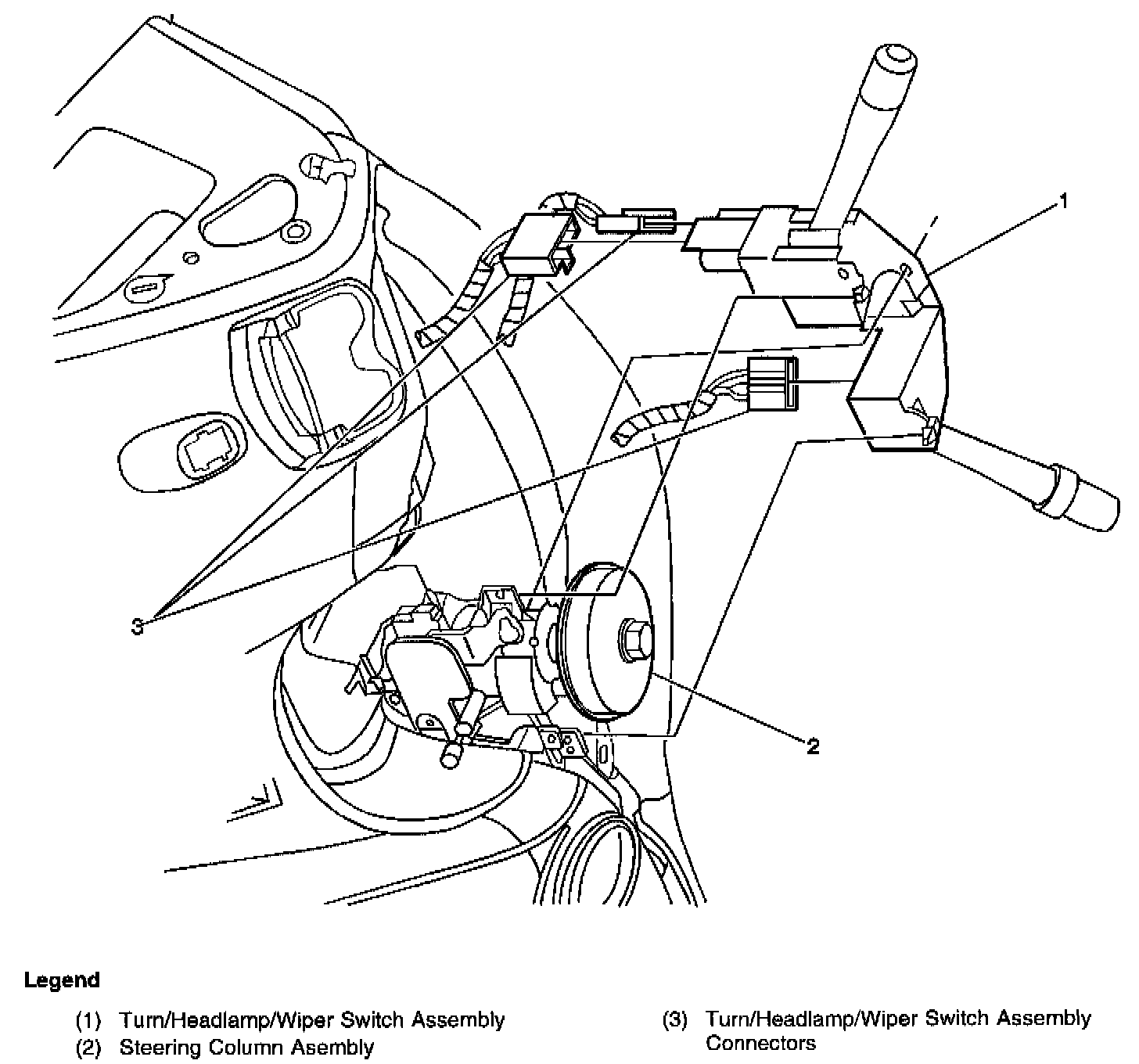

Turn/Headlamp/Wiper Switch Assembly Connectors
Turn/Headlamp/Wiper Switch Assembly Connectors
Left Side Of The Instrument Panel:
