System Diagram
System Diagram

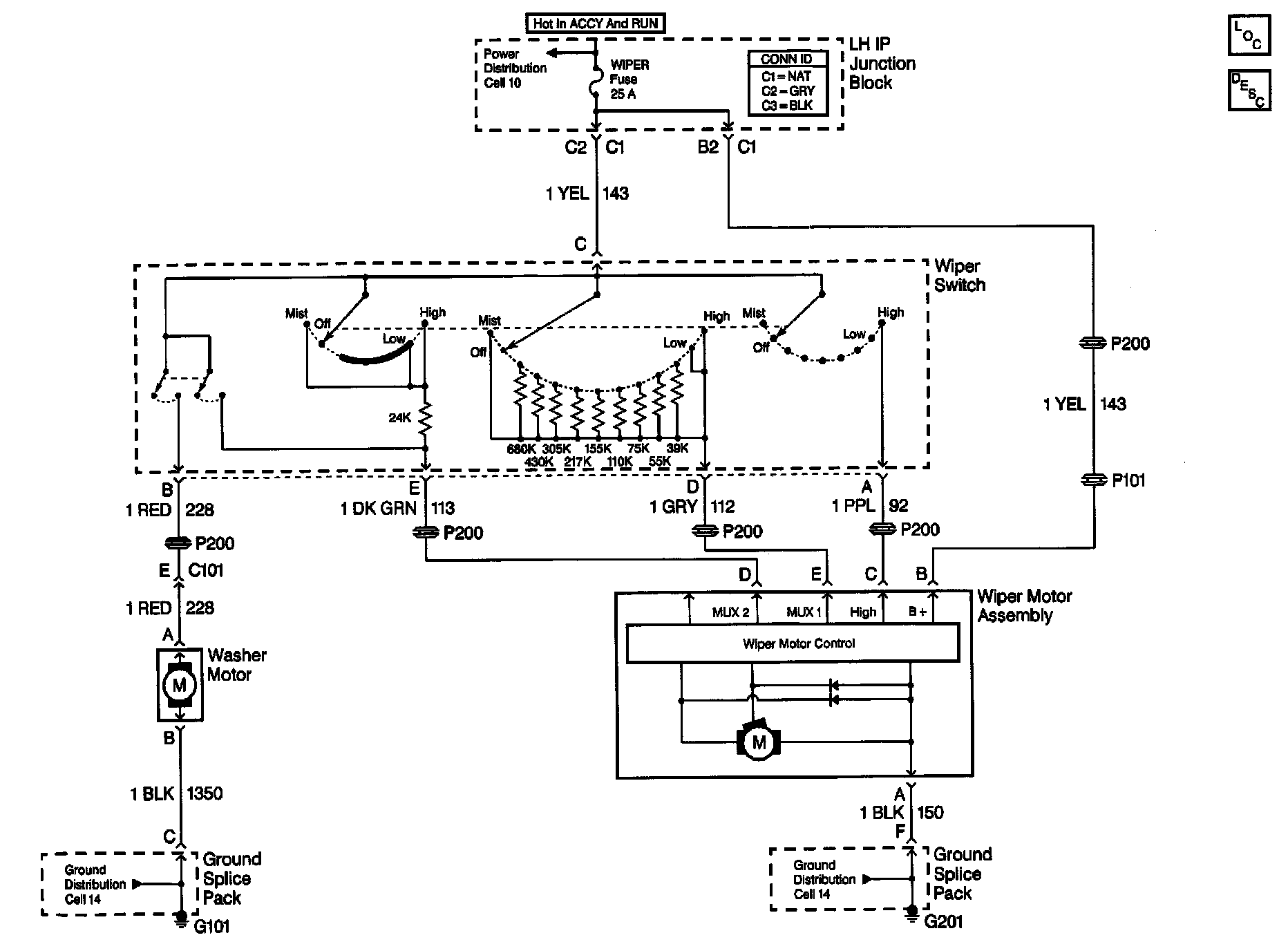

Wiper/Washer System (pulse) Schematics: Wiper Switch, Washer Motor And Wiper Motor:
