Engine

Disassembled Views

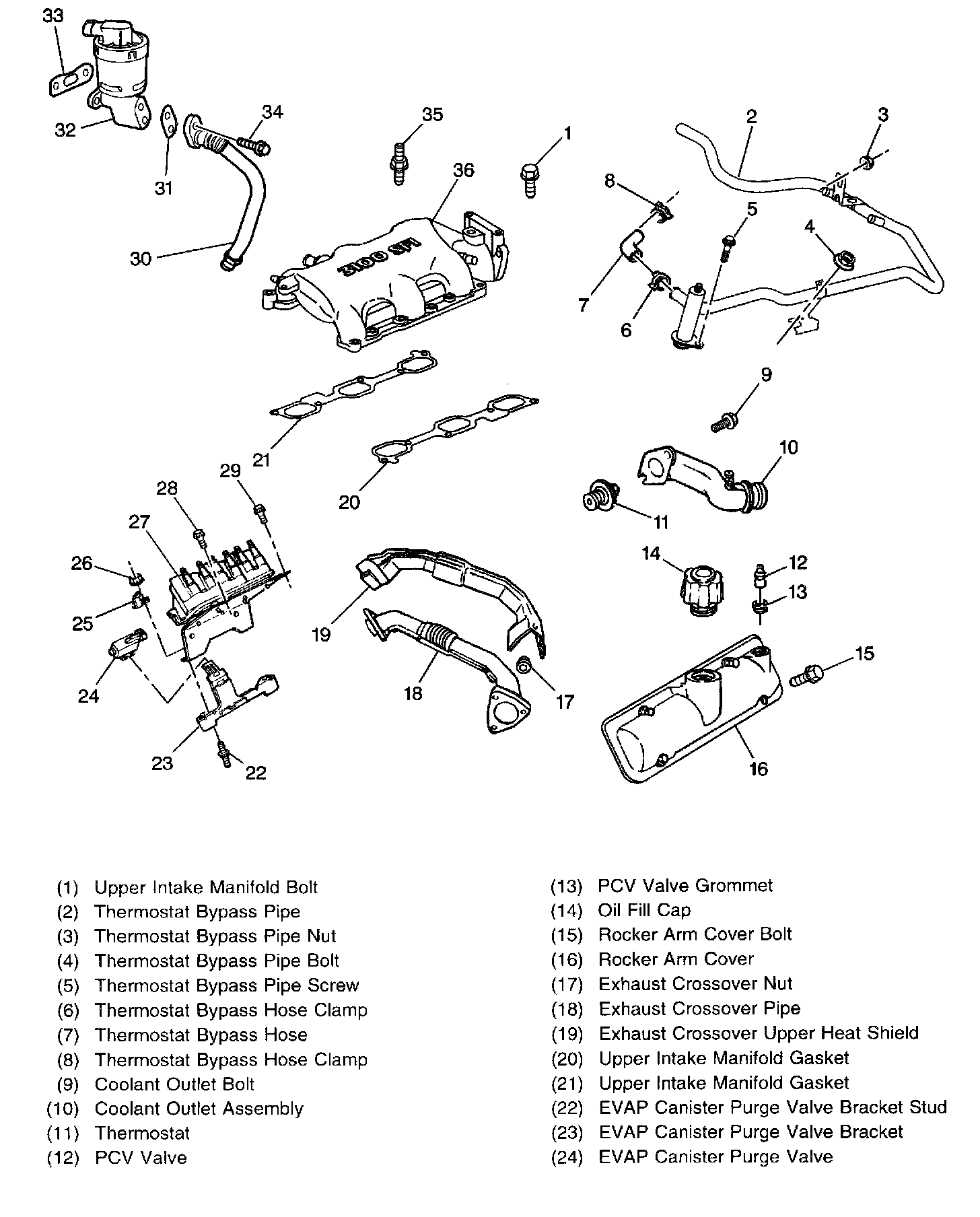

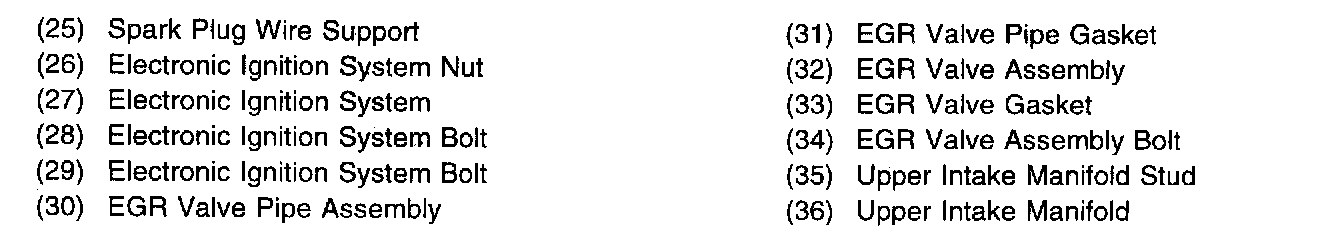

Upper Intake Manifold and Components

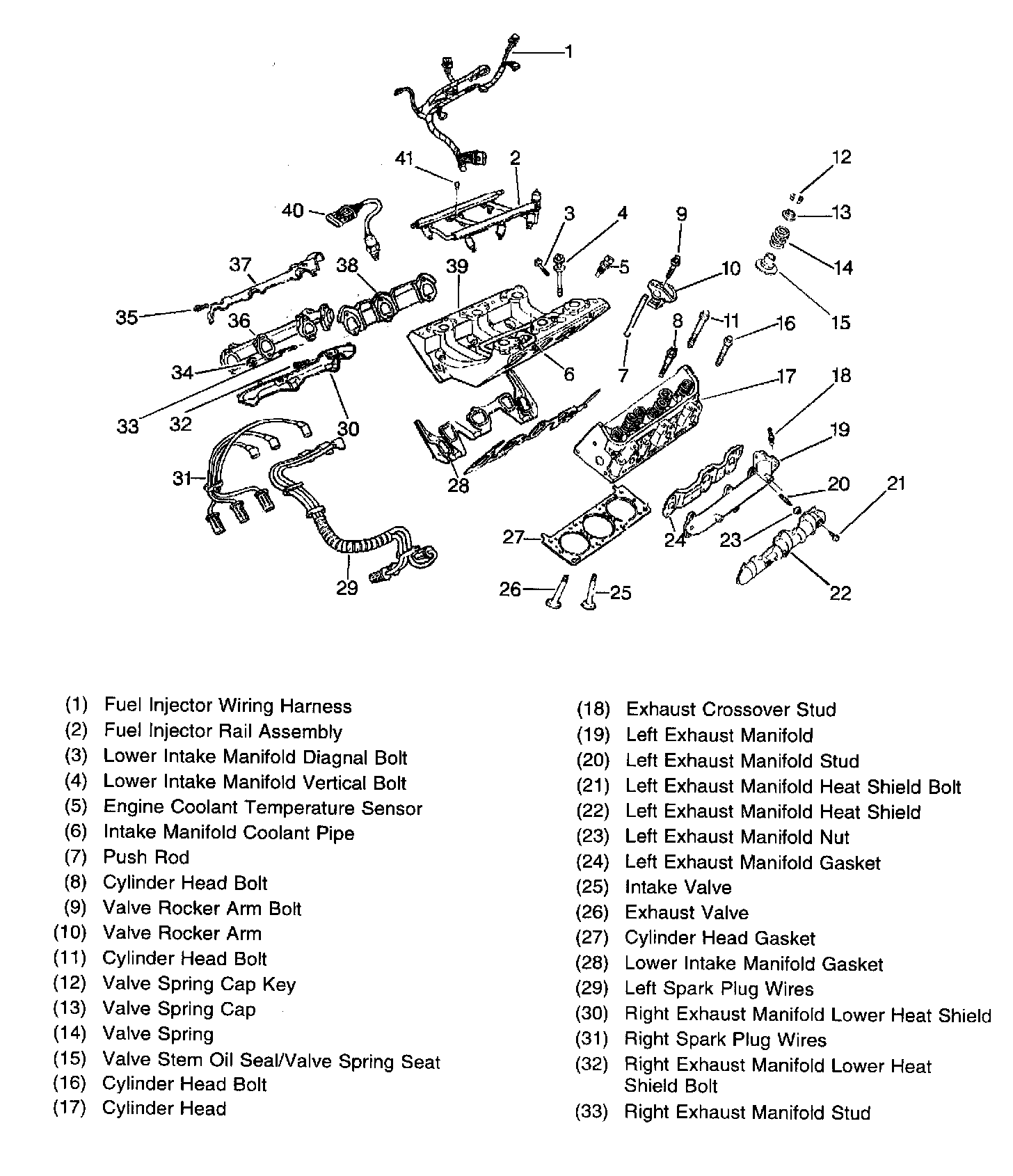

Lower Intake Manifold, Cylinder Head, and Components








Engine Block and Components








Crankshaft and Components
