Air Temperature Control
Air Temperature Control

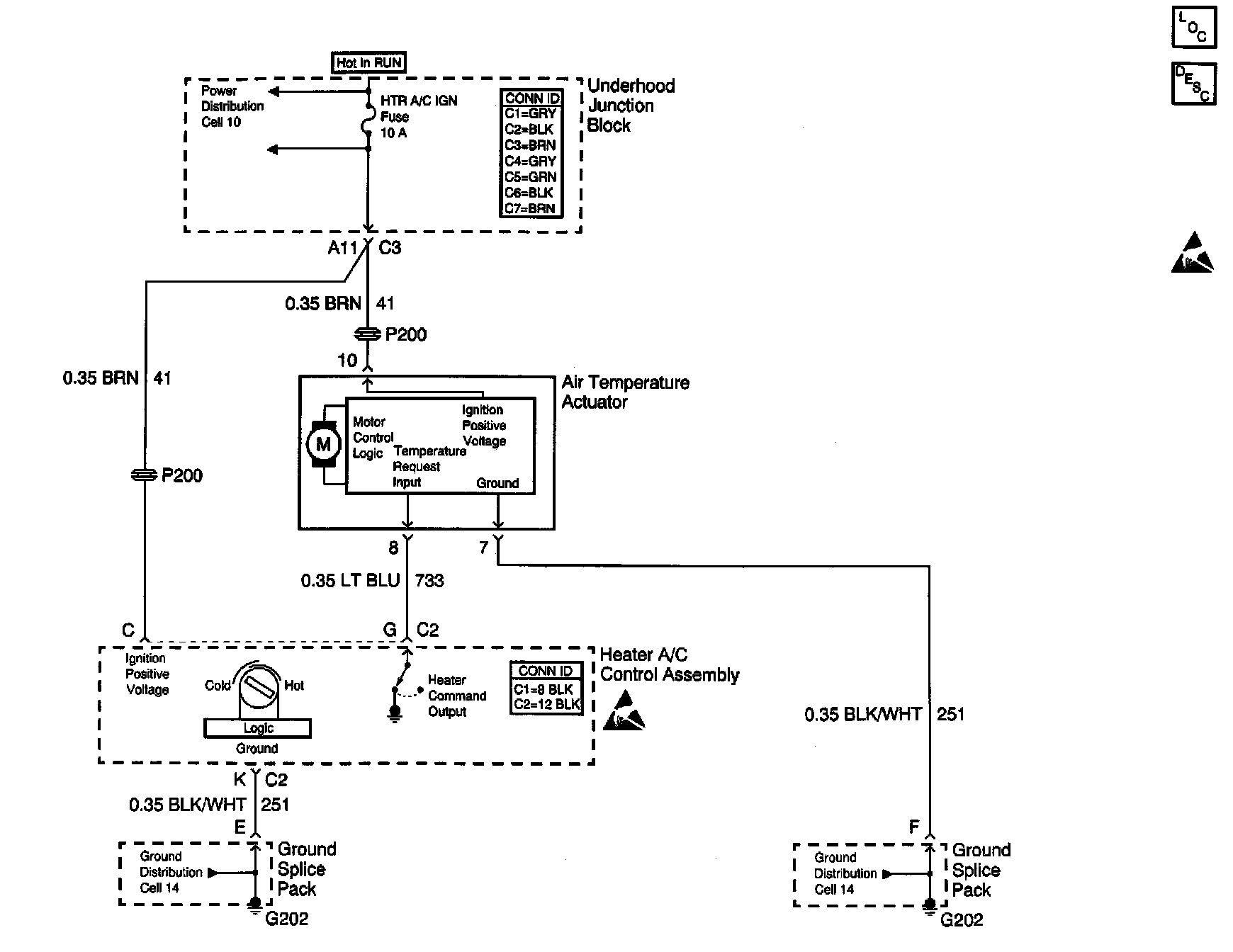

HVAC Air Delivery/temperature Control Schematics: Air Temperature Control:
