Instrument Panel (IP) - Defroster Grille Replacement

Defroster Grille Replacement

Removal Procedure




1. Remove the upper windshield garnish moldings.

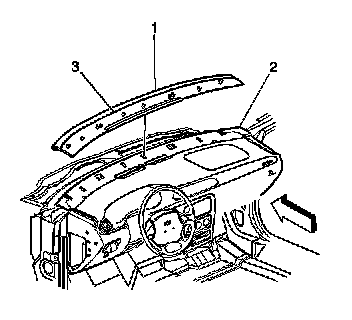

2. Gently, unsnap the grille (1) from the instrument panel (2) by lifting upward.

Installation Procedure




1. Install the grille (1) to the instrument panel (2) by pushing downward.
2. Install the garnish moldings refer to Upper Pillar Garnish Molding Replacement in Interior Trim.
