Brake Warning System Schematics
Brake Warning System Schematics

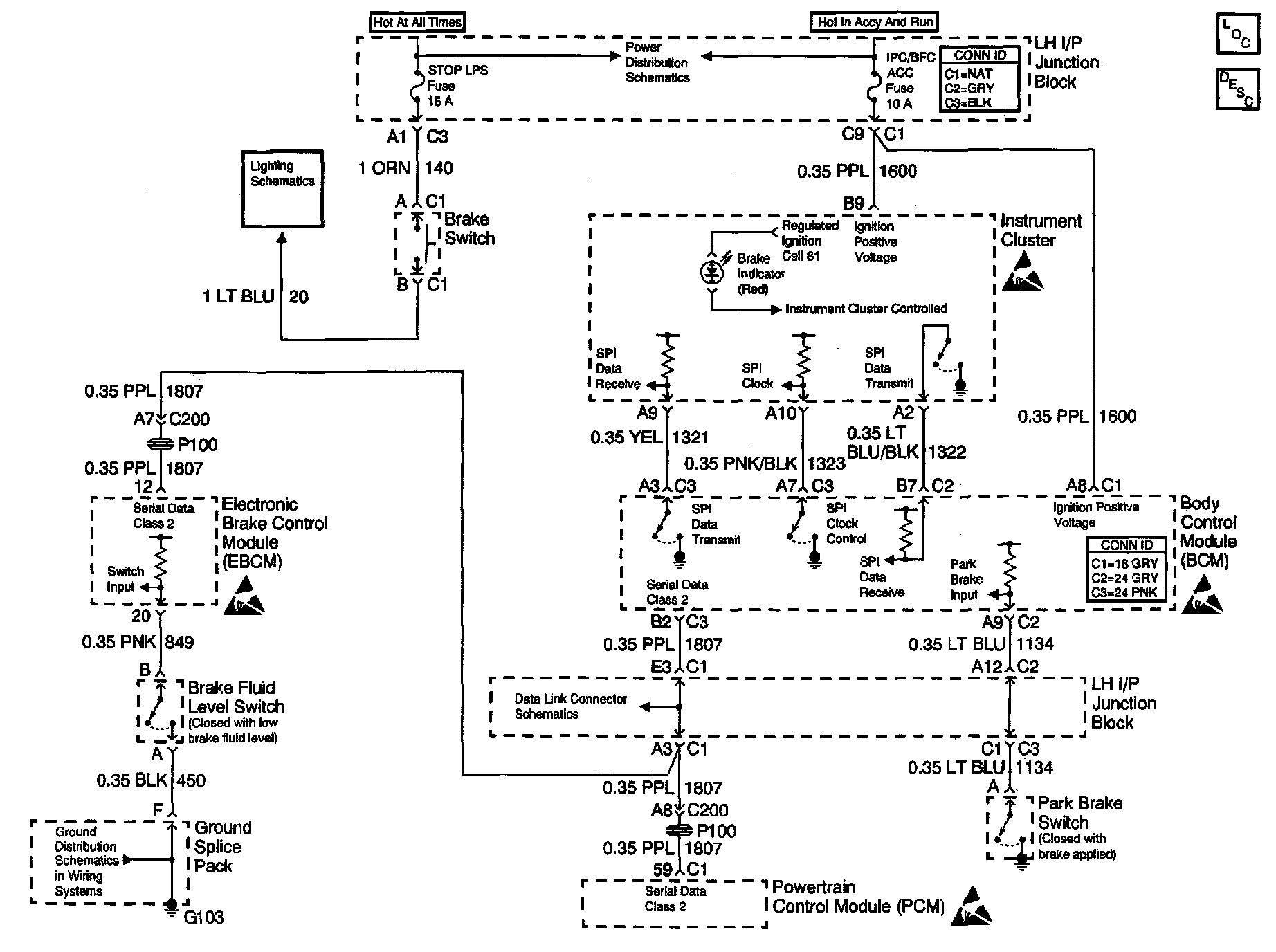

Brake Warning System Schematics: Brake Warning Schematics:
