Oil Level Warning Indicator: Testing and Inspection

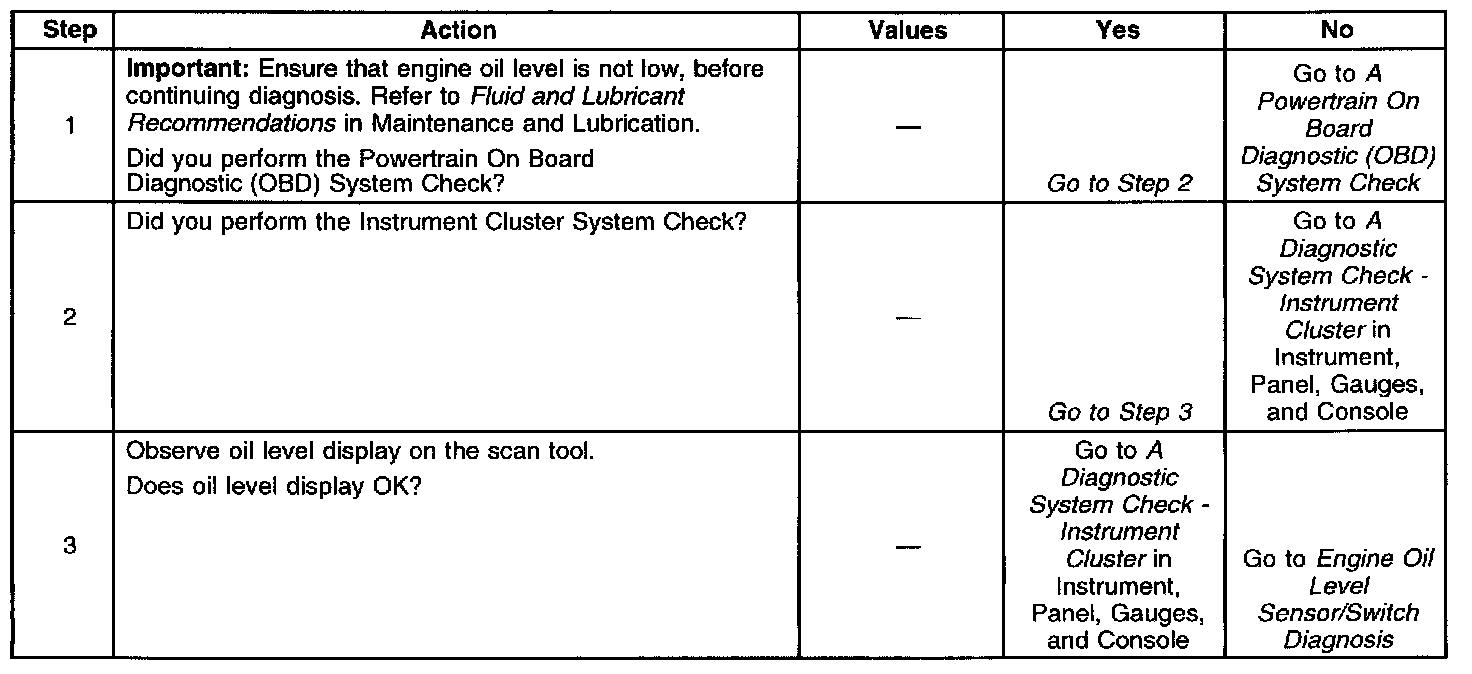

Diagnostic Chart:

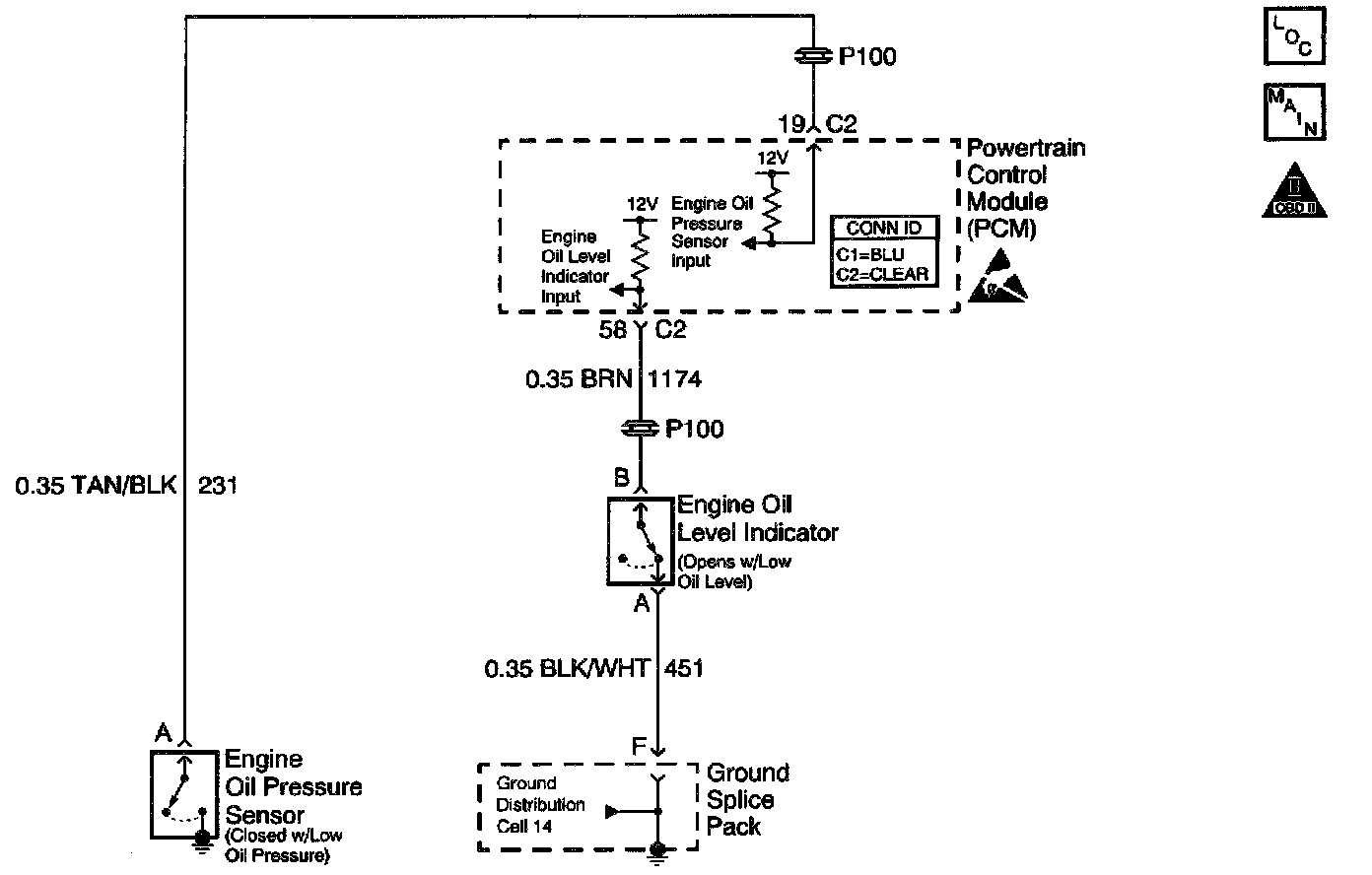

Schematic:

CIRCUIT DESCRIPTION
The oil level switch is a magnetic reed float style switch which is closed with oil level full and open when oil level is low. The Powertrain Control Module (PCM) monitors the oil level switch to determine if the oil is LOW or OK. When the Test Conditions have been met the PCM will monitor the oil level switch input. If a low oil level is indicated, the PCM will send a Class II message to the Instrument Panel (IP) Cluster. The IP Cluster will then indicate the oil level is low. If the Test Conditions have not been met then the PCM ignores the oil level switch input and oil level OK is indicated to the IP Cluster. The engine coolant temperature Test Condition is required to ensure enough time has passed since the engine was last stopped. The time period/coolant temperature difference is to allow enough time for the engine oil to drain back into the oil pan. The colder the current engine temperature is, the larger the drop in temperature necessary. This is to ensure colder, thicker oil has drained back into the oil pan.
^ The engine coolant temperature must be more than 15°C (59°F).
^ The engine coolant temperature at key ON must be at least 12°C (22°F) cooler than the engine coolant temperature at the last key OFF.

The low oil level lamp will be illuminated for about a minute when the PCM checks for low oil level and the engine oil level switch indicates that a low oil level condition exists (engine oil level switch circuit not grounded). When the ignition is first turned ON, the IP cluster commands the low oil level lamp ON for a brief period of time to test the bulb.

DIAGNOSTIC AIDS

IMPORTANT: The oil level switch is mounted to the oil pan at a level below the full level. Removal of the switch may drain several quarts of oil.

For diagnosis of the instrument panel, perform A Diagnostic System Check - Instrument Cluster in Instrument Panel, Gauges and Warning Indicators. Testing and Inspection

Inspect for the following conditions:

IMPORTANT: Remove any debris from the connector surfaces before servicing a component. Inspect the connector gaskets when diagnosing or replacing a component. Ensure that the gaskets are installed correctly. The gaskets prevent contaminate intrusion.

^ Poor terminal connection - Inspect the harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and faulty terminal to wire connection. Use a corresponding mating terminal to test for proper tension. Refer to Diagrams.
^ Damaged harness - Inspect the wiring harness for damage. If the harness inspection does not reveal a problem, observe the display on the scan tool while moving connectors and wiring harnesses related to the sensor. A change in the scan tool display may indicate the location of the fault. Refer to Diagrams.
^ PCM and engine grounds for clean and secure connections.

If the DTC is determined to be intermittent, reviewing the Failure Records can be useful in determining when the DTC was last set.
