Positive Crankcase Ventilation: Testing and Inspection

Results of Incorrect Operation

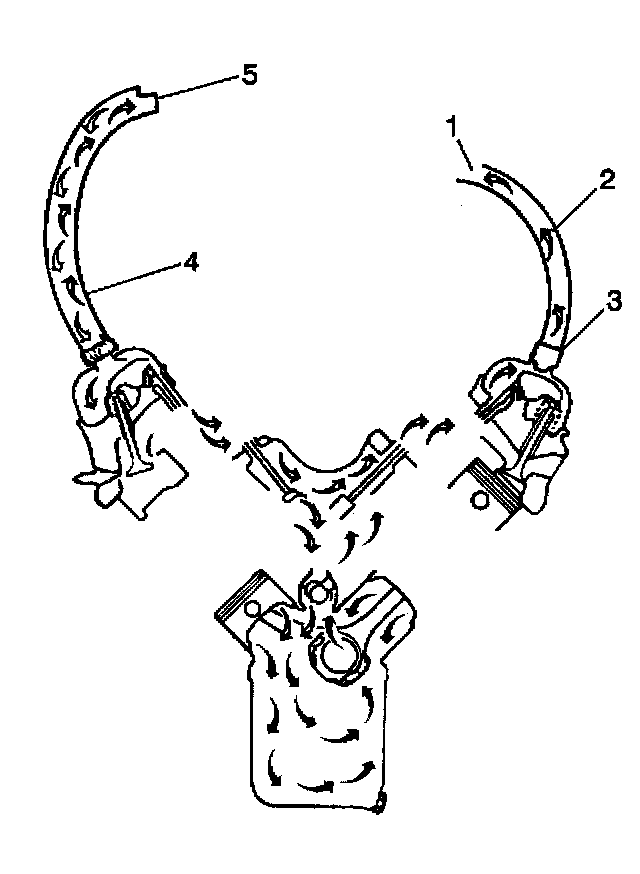

^ A plugged valve (3) or hose may cause the following conditions:
- Rough idle
- Stalling or slow idle speed
- Oil leaks
- Oil in air cleaner
- Sludge in engine
^ A leaking crankcase ventilation valve (3) or hose may cause the following conditions:
- Rough idle
- Stalling
- High idle speed






Function Test
With these systems, any blow-by in excess of the system capacity (from a badly worn engine, sustained heavy load, etc.) is exhausted into the air cleaner and is drawn into the engine.

Proper operation of the crankcase ventilation system depends upon a sealed engine. If oil slugging or dilution is noted and the crankcase ventilation system is functioning properly, inspect the engine for a possible cause. Correct any problems.

If an engine is idling rough, inspect for a clogged crankcase ventilation valve, a dirty vent filler, air cleaner element, or plugged hose. Replace as required. Use the following procedure:
1. Remove the crankcase ventilation valve from the rocker arm cover.
2. Operate the engine at idle.
3. Place your thumb over the end of the valve in order to inspect for a vacuum. If there is no vacuum at the valve, inspect for the following items:
^ Plugged hoses.
^ The manifold port.
^ The crankcase ventilation valve.
4. Turn off the engine. Remove the crankcase ventilation valve. Shake the valve. Listen for the rattle of the inspect needle inside of the valve. If valve does not rattle, replace the valve.
