Home >> Chevrolet >> 2000 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Switch >> Diagrams

Windshield Washer Switch: Diagrams

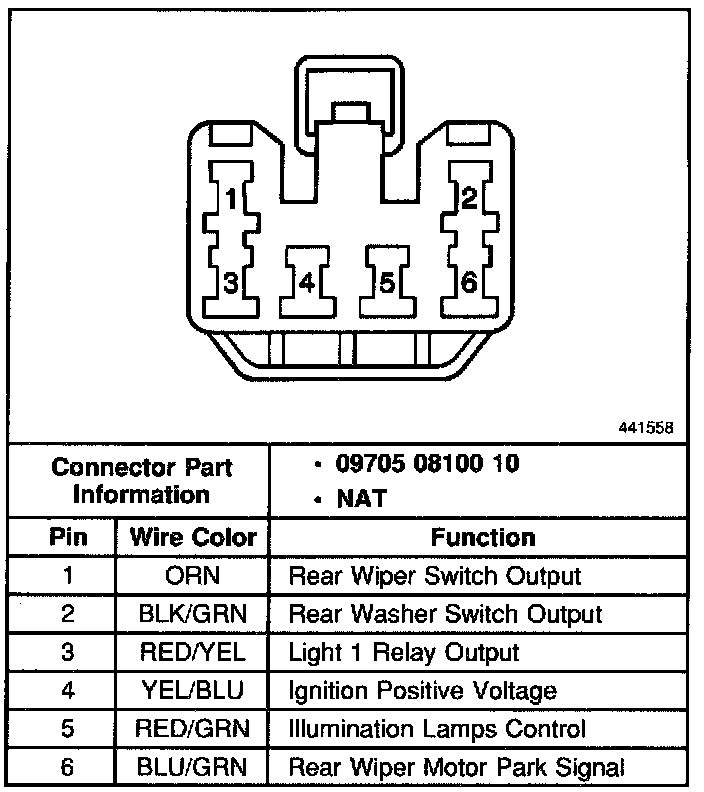

Rear Wipe/Washer Switch:
