Home
>>
Chevrolet
>>
2000
>>
Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>

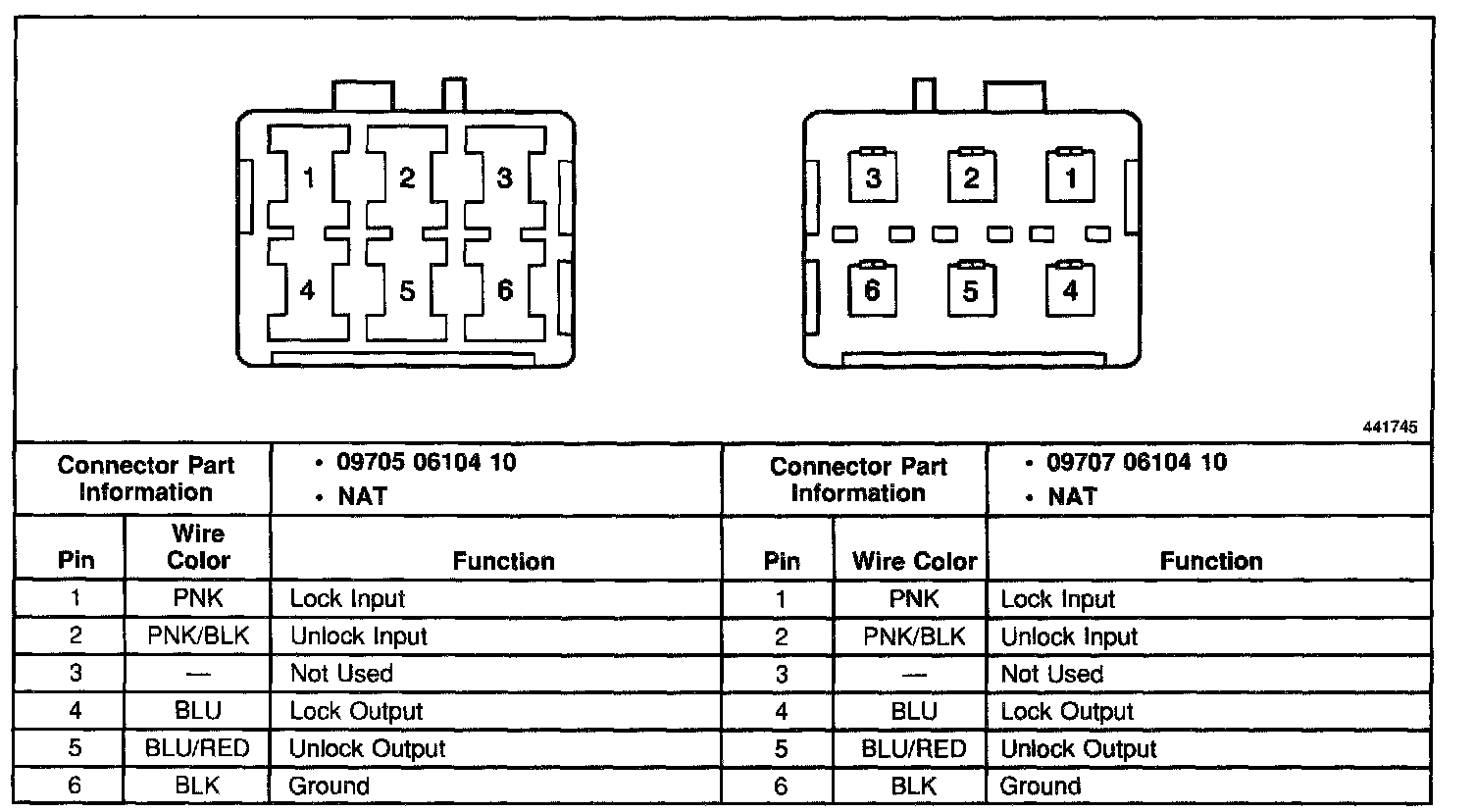

C213 (With Power Locks)
C213 (With Power Locks)
C212 (With Power Locks):
