Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device Control Module
Audible Warning Device Control Module

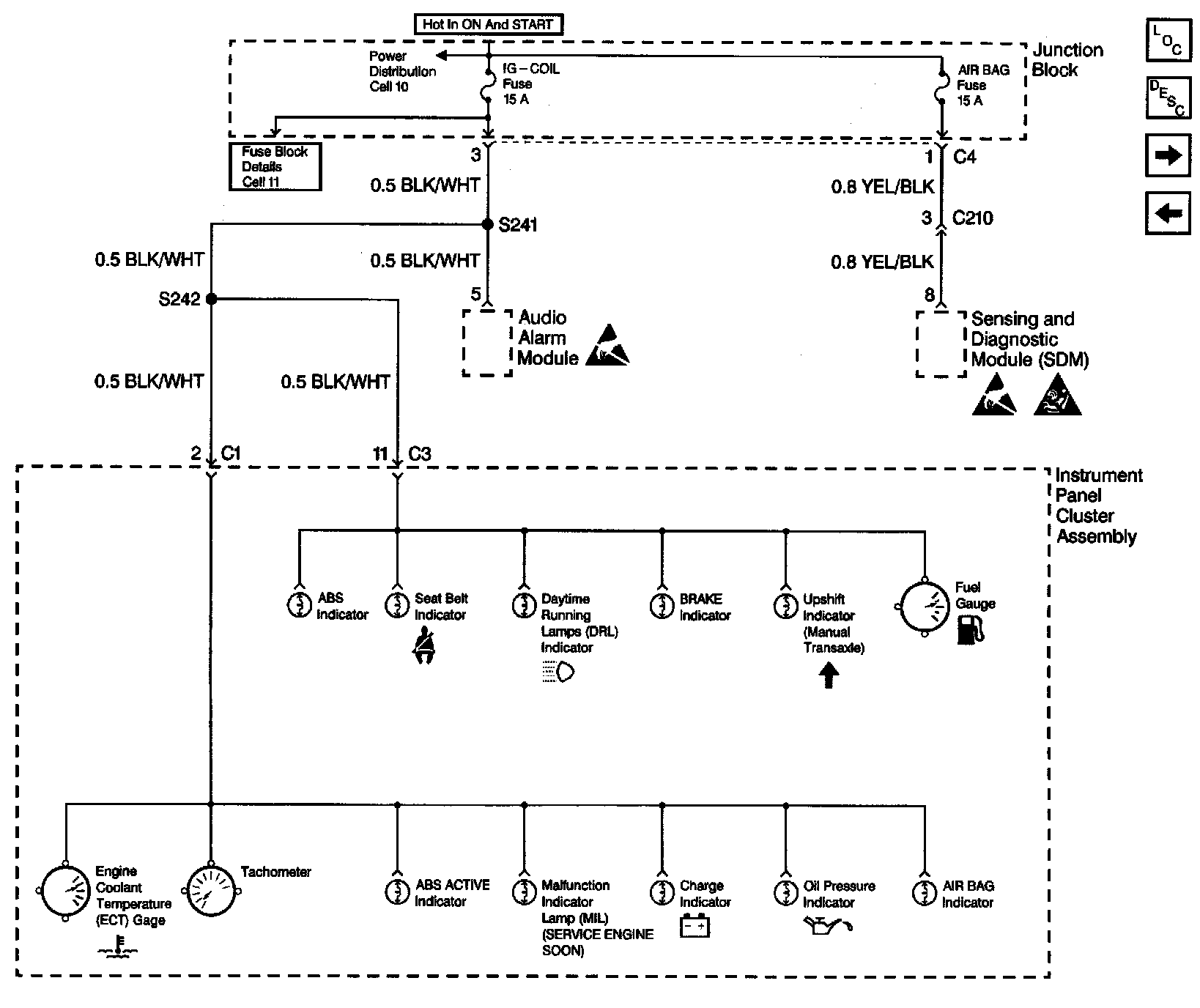

Fuse Block Details Schematics: Audio Alarm Module:
