Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
A/T Controls
A/T Controls

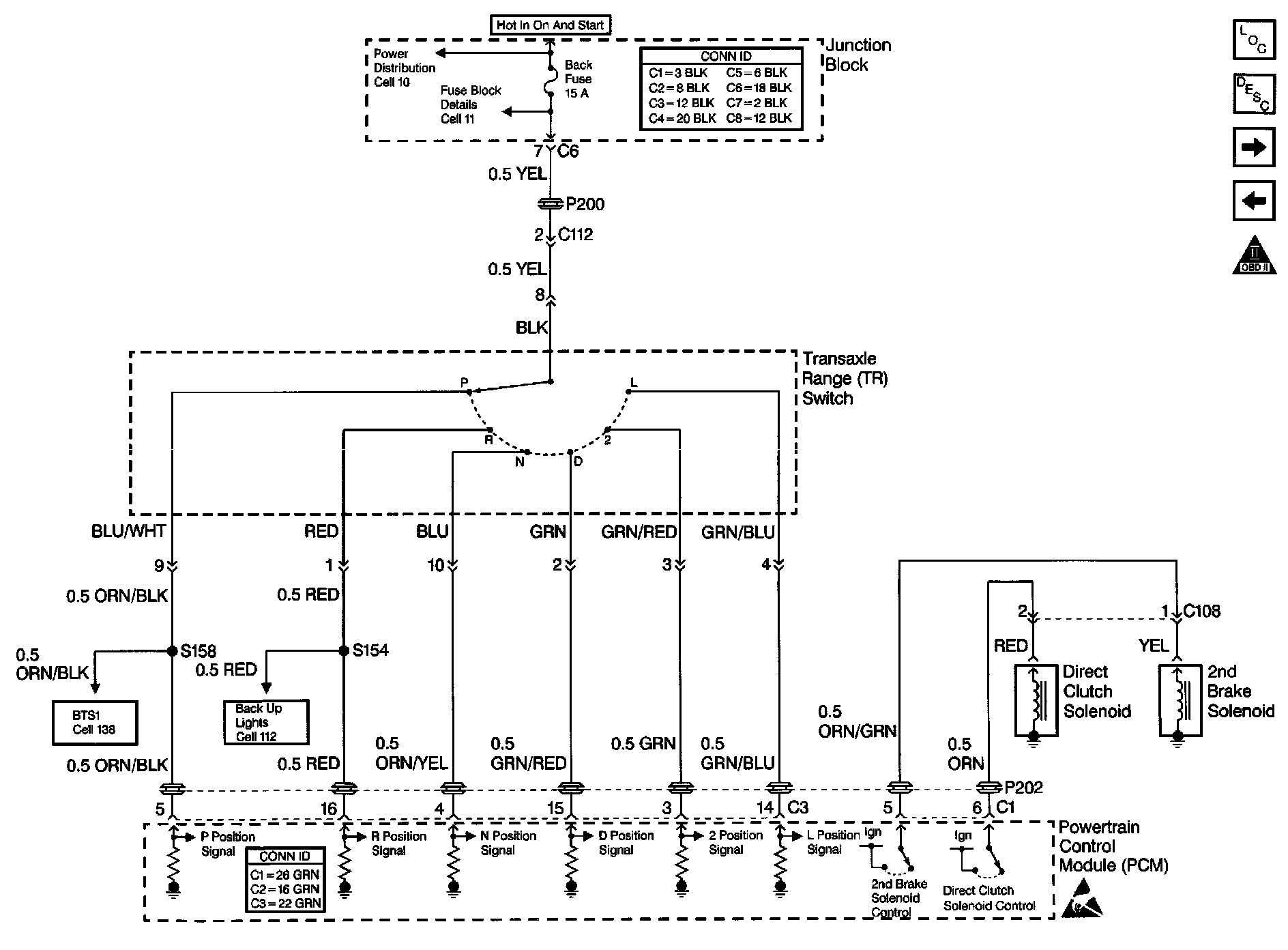

Engine Controls Schematics: A/T Controls:
