HVAC Compressor/Condenser Fan Control Schematic (A/C Relays)
HVAC Compressor/Condenser Fan Control Schematic (A/C Relays)

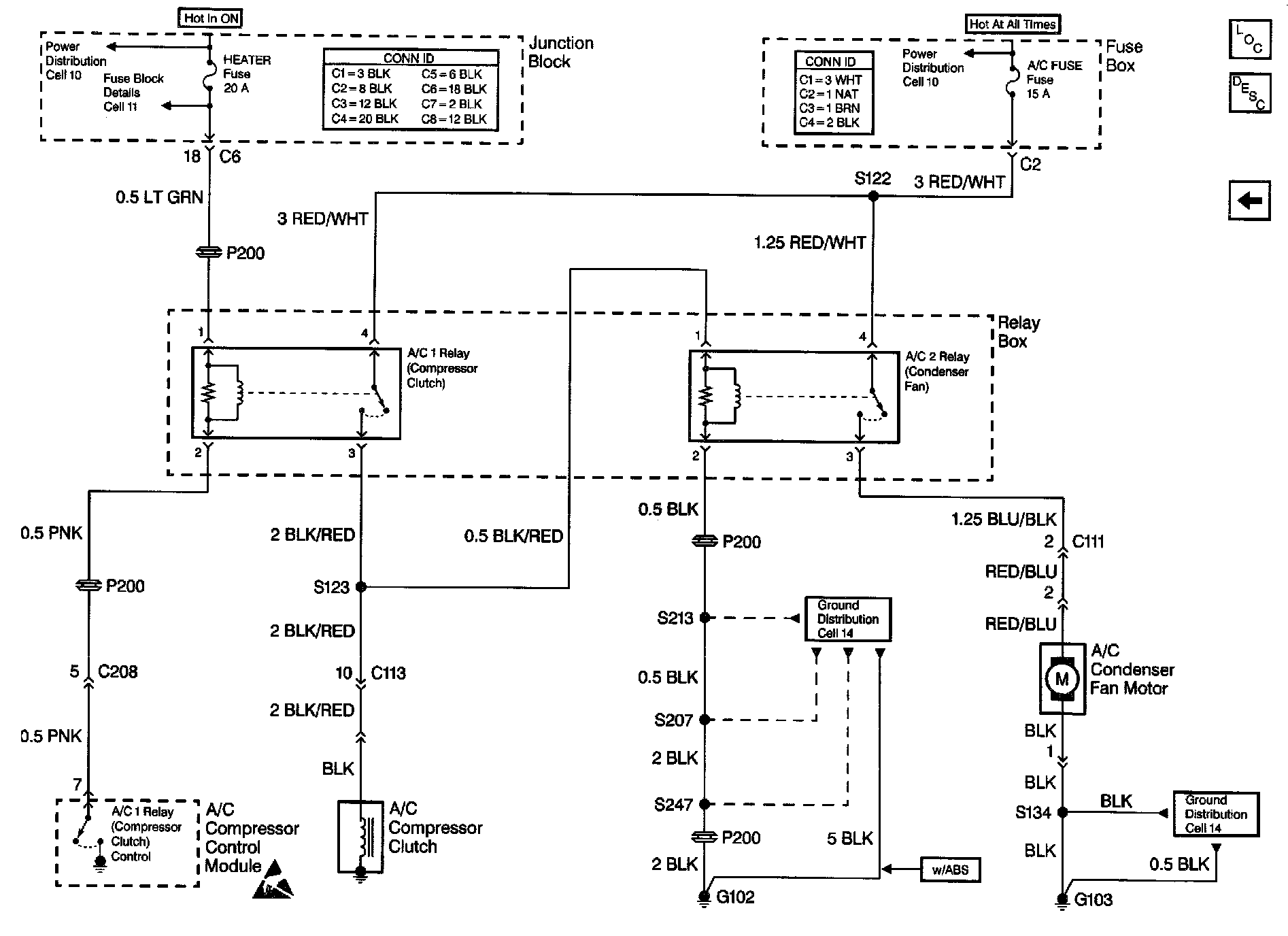

HVAC Compressor/Condensor Fan Control Schematics: A/C Relays, Condensor Fan And Compressor Clutch:
