Home >> Chevrolet >> 2000 >> Metro L4-079 1.3L VIN 2 MFI >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Backup Lights

Backup Lights

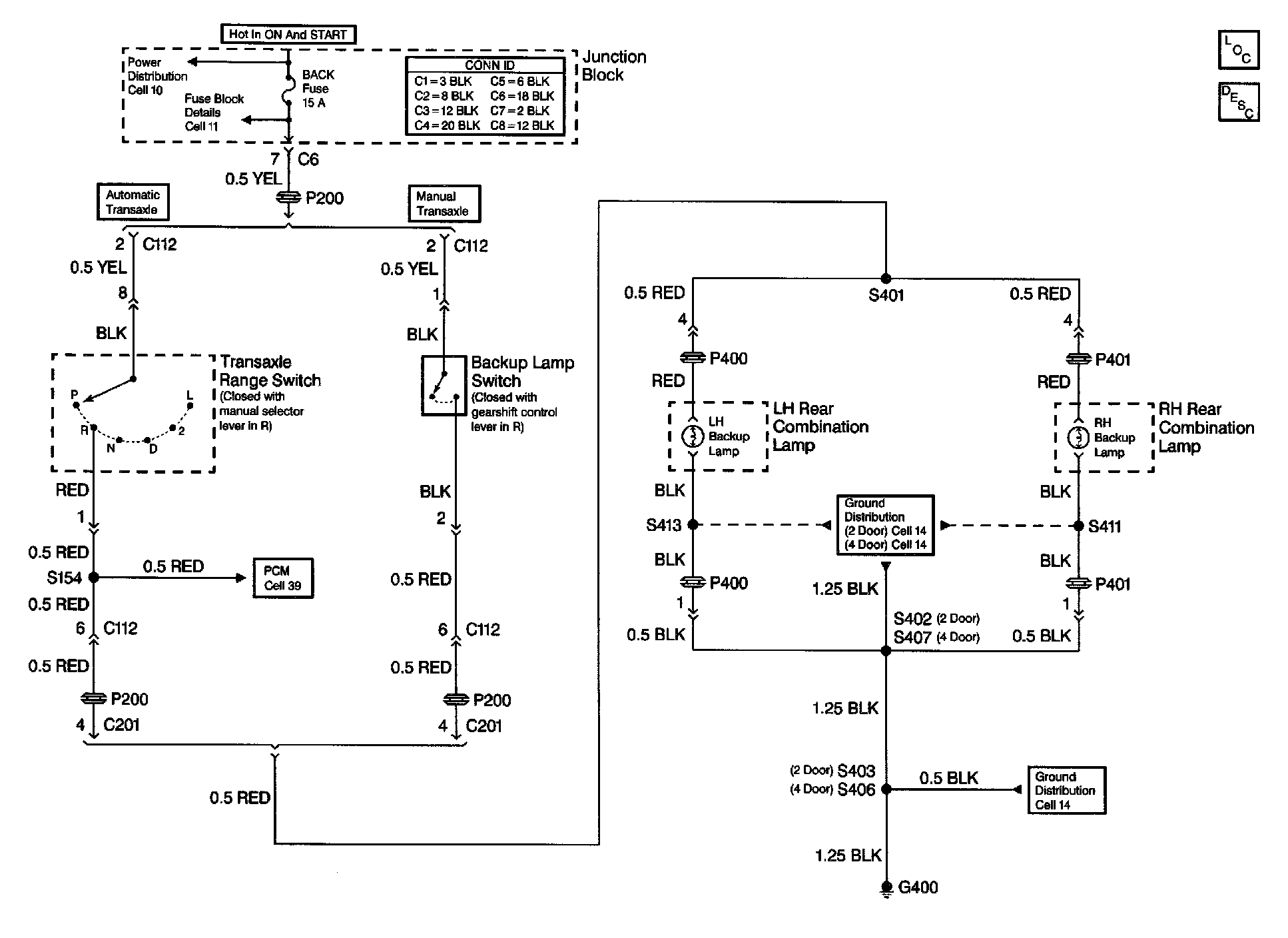

Backup Lights Schematics : Backup Lamp Switch:
