B3069

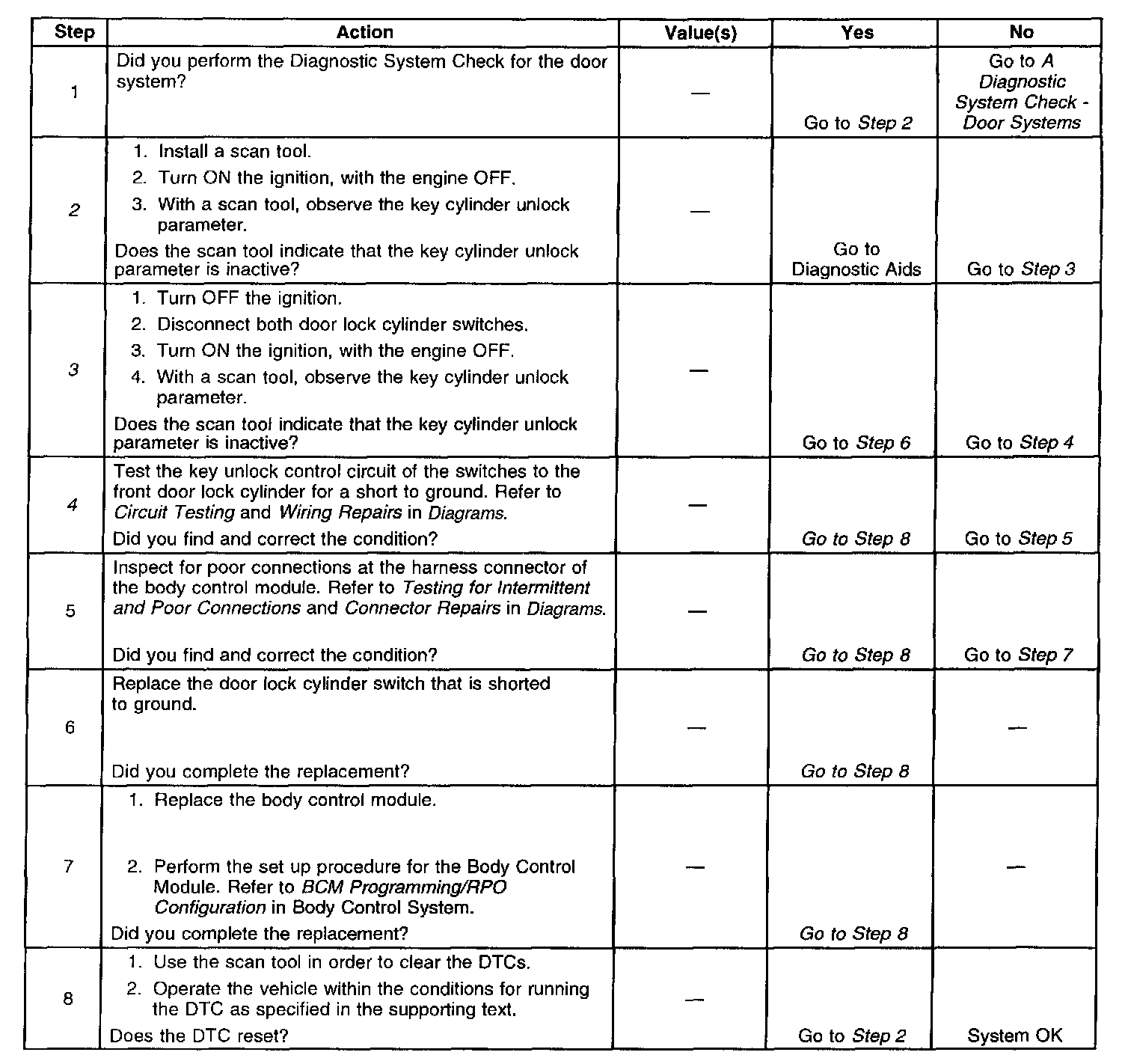

Diagnostic Chart:

Refer to Door Lock/Indicator Schematics.

Circuit Description
The key cylinder switch provides a direct ground input into the body control module (BCM) when you activate the switch. This input allows the BCM to detect when the front door key cylinders are turned to the unlock position. This input is needed for the optional content theft deterrent system when the keyless entry feature does not unlock the doors.

Conditions for Setting the DTC
The BCM detects a short to ground in the key unlock input circuit for longer than 60 seconds.

Action Taken When the DTC Sets
^ The BCM stores DTC B3069 in memory.
^ The BCM will disable the input and all operations of the input until the fault goes away.

Conditions for Clearing the DTC
^ A current DTC B3069 will clear if the BCM no longer detects a short to ground in the key unlock input circuit for longer than 60 seconds.
^ A history DTC B3069 will clear after 100 consecutive ignition cycles if the condition for the malfunction is no longer present.
^ A scan tool may be used to clear the DTC.

Diagnostic Aids
^ If the DTC B3069 is a history DTC, the fault may be intermittent. Refer to Intermittents and Poor Connections.
^ The following conditions may cause an intermittent malfunction to occur:
- An intermittent short to ground in the key unlock input circuit
- The key cylinder switch is intermittently shorted to ground internally
- The BCM is intermittently shorted to ground internally

Test Description
2. Determines whether the short to ground in the key cylinder unlock circuit is present or intermittent.
3. Tests for door lock cylinder switches that are shorted to ground or contacts closed at all times.
4. Tests for a short to ground in the key unlock control circuit.
