P1602

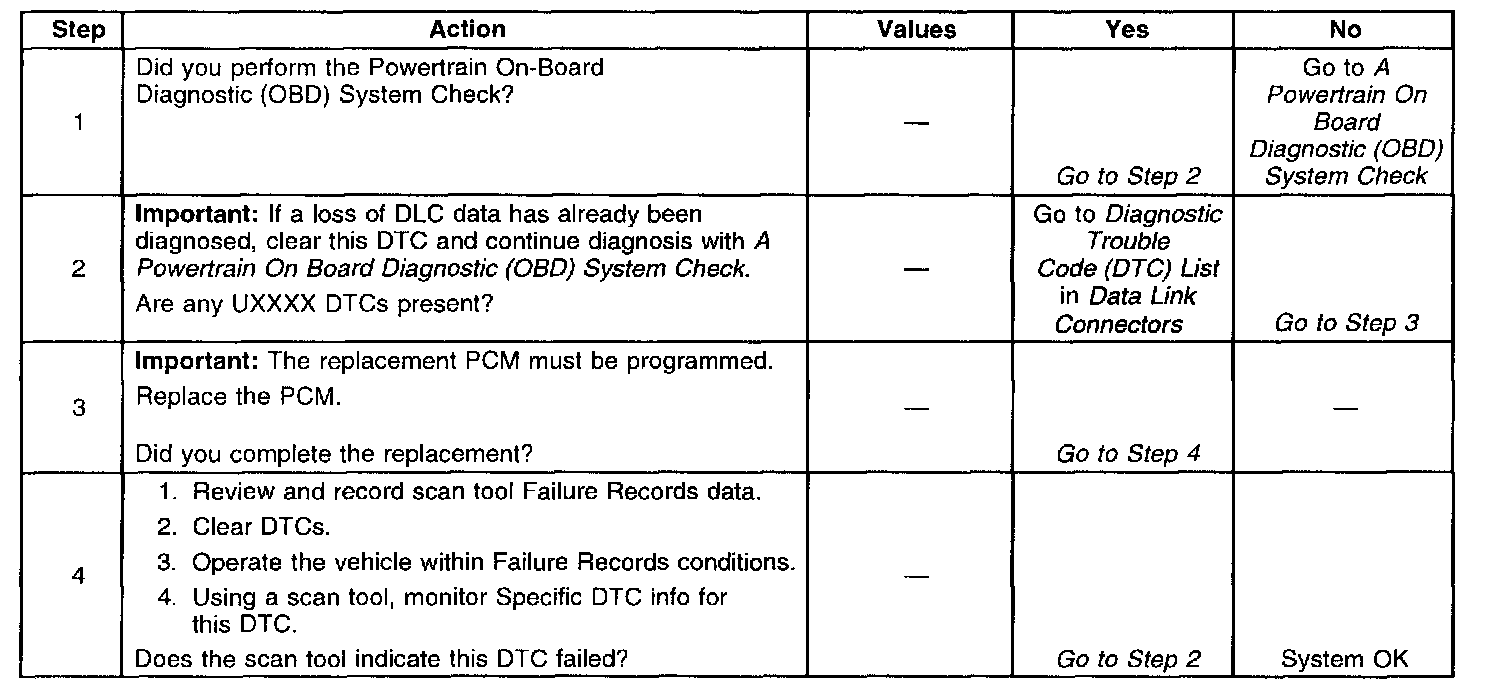

Diagnostic Chart P1602:

Refer to Data Link Communications Schematic.

CIRCUIT DESCRIPTION
A Class II serial data communications system is used on this vehicle to allow various modules to communicate and share information with each other. This allows vehicle wiring to be reduced and the transmission and reception of multiple signals over a single wire. The messages carried on a Class II serial data streams are also prioritized. If two messages attempt to establish communications on the data line at the same time, the message with the higher priority will continue. The message with the lower priority message will wait. If a module cannot respond to the Powertrain Control Module (PCM), a DTC is stored.

CONDITIONS FOR RUNNING THE DTC
^ The ignition is ON.
^ System voltage is more than 8.2 volts.

CONDITIONS FOR SETTING THE DTC
The PCM is detecting a loss of serial data from the EBCM for longer than 5 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM will not illuminate the Malfunction Indicator Lamp (MIL).
^ The PCM will store conditions which were present when the DTC set as Failure Records data only. This information will not be stored as Freeze Frame data.

CONDITIONS FOR CLEARING THE MIL/DTC
^ A History DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
^ The DTC can be cleared by using a scan tool.

DIAGNOSTIC AIDS
Inspect for the following conditions:

IMPORTANT: Remove any debris from the connector surfaces before servicing a component. Inspect the connector gaskets when diagnosing or replacing a component. Ensure that the gaskets are installed correctly. The gaskets prevent contaminate intrusion.

^ Poor terminal connection - Inspect the harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and faulty terminal to wire connection. Use a corresponding mating terminal to test for proper tension.
^ Damaged harness - Inspect the wiring harness for damage. If the harness inspection does not reveal a problem, observe the display on the scan tool while moving connectors and wiring harnesses related to the sensor. A change in the scan tool display may indicate the location of the fault.
^ PCM and engine grounds for clean and secure connections

If the DTC is determined to be intermittent, reviewing the Failure Records can be useful in determining when the DTC was last set.
