Sunroof / Moonroof: Adjustments

Sunroof Window Height and Opening Fit Adjustment




1. Slide the sunroof sunshade to the open position.
2. Move the sunroof glass panel to the fully closed position.

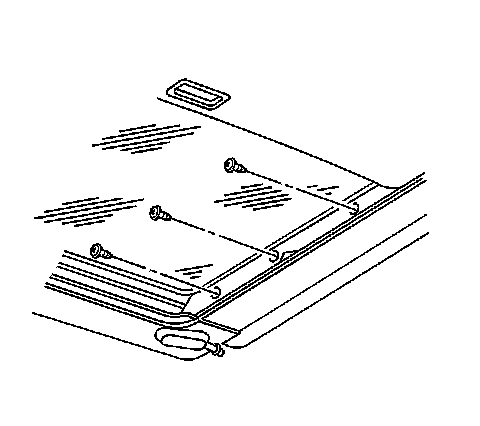

3. Separately loosen the 6 sunroof glass panel adjusting screws (3 each side).
4. Individually adjust the 4 corners (1) of the sunroof glass panel.
5. Adjust the front of the sunroof glass panel to 0.1 mm (1/32 in) below the top surface of the roof panel (3).
6. Adjust the rear of the sunroof glass panel to 0.1 mm (1/32 in) above the top surface of the roof panel (2).





Notice: Refer to Fastener Notice in Cautions and Notices.

7. Tighten the sunroof glass panel adjusting screws.

Tighten the sunroof glass panel adjusting screws to 4 Nm (35 lb in).
