Sunroof / Moonroof: Service and Repair

REMOVAL PROCEDURE




1. Position the sun roof in the fully closed position.
2. Remove the headliner.Service and Repair
3. Disconnect the electrical connector from the sunroof module.

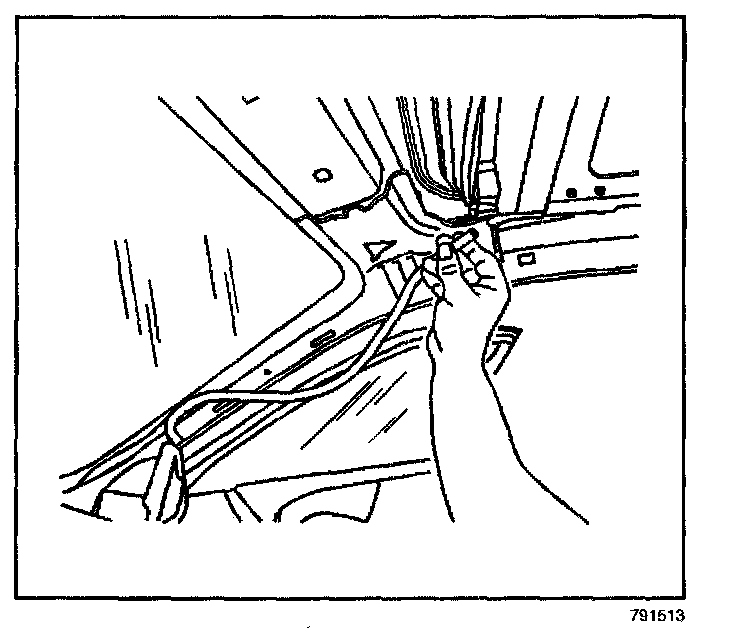

4. Disconnect the front and rear drain hoses from the sunroof module.




5. Have an assistant support the sunroof module.

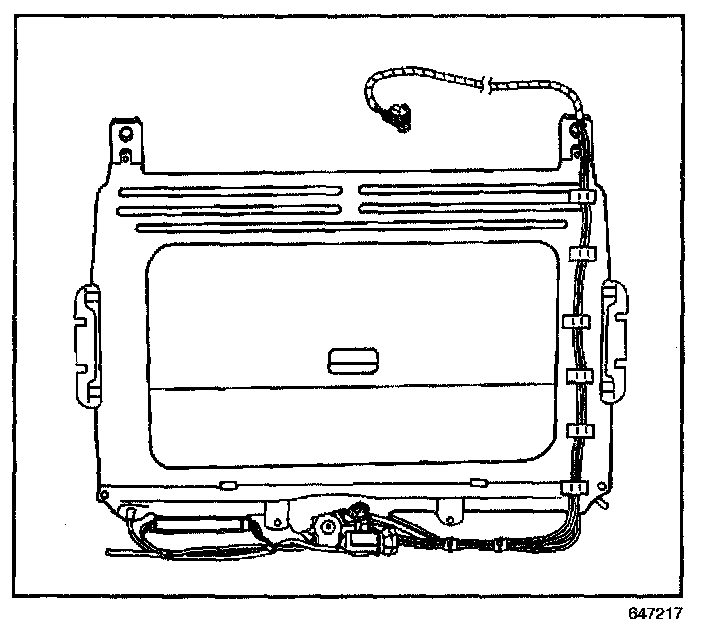

6. Remove the bolts from the sunroof module.
7. Remove the sunroof module from the vehicle with an assistant.

INSTALLATION PROCEDURE




1. Position the sunroof module to the vehicle roof with an assistant.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the sunroof module bolts.

Tighten
Tighten the sunroof module bolts to 10 N.m (89 lb in).




3. Connect the front and rear drain hoses to the sunroof module.




4. Connect the electrical connector to the sunroof module.
5. Check for proper operation of the sunroof. Refer to Power Sunroof Description and Operation.
6. Install the headliner.
