Cruise Control Module: Service and Repair

REMOVAL PROCEDURE

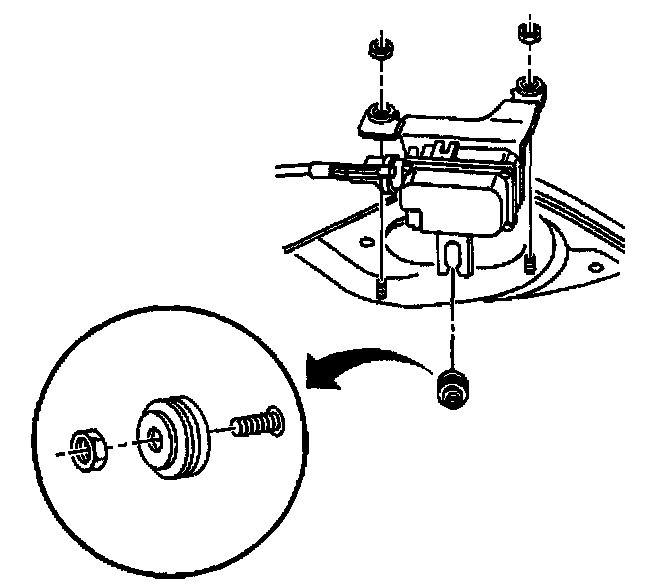

The cruise control module is mounted to the left strut tower and must be serviced as a complete unit.




1. Remove the cruise control cable from the cruise control module.




2. Remove the electrical connector from the cruise control module.
3. Remove the cruise control module shock tower nuts.
4. Remove the cruise control module.

INSTALLATION PROCEDURE




1. Install the cruise control module on the mounting studs located on the shock tower.




2. Install the cruise control module mounting nuts.

Tighten
Tighten the cruise control module mounting nuts to 2 N.m (18 lb in).

3. Install the electrical connector to the cruise control module.
4. Install the cruise control cable to the cruise control module.
5. Adjust the cruise control cable.
