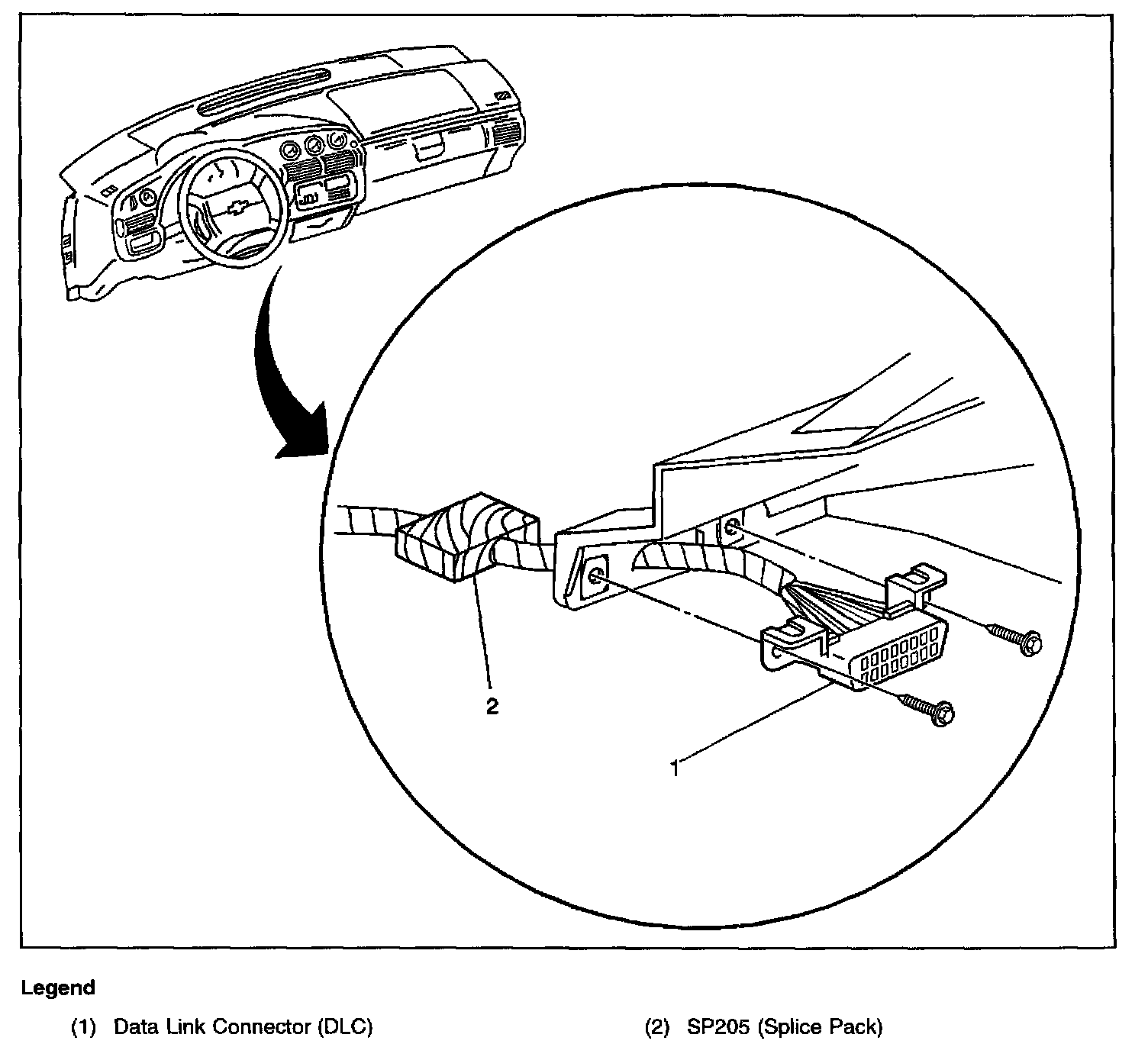

Splice Pack (SP205)

Locations View:




Next to the LH IP accessory wiring junction block wiring harness, taped on harness.
