Headlamp Relay

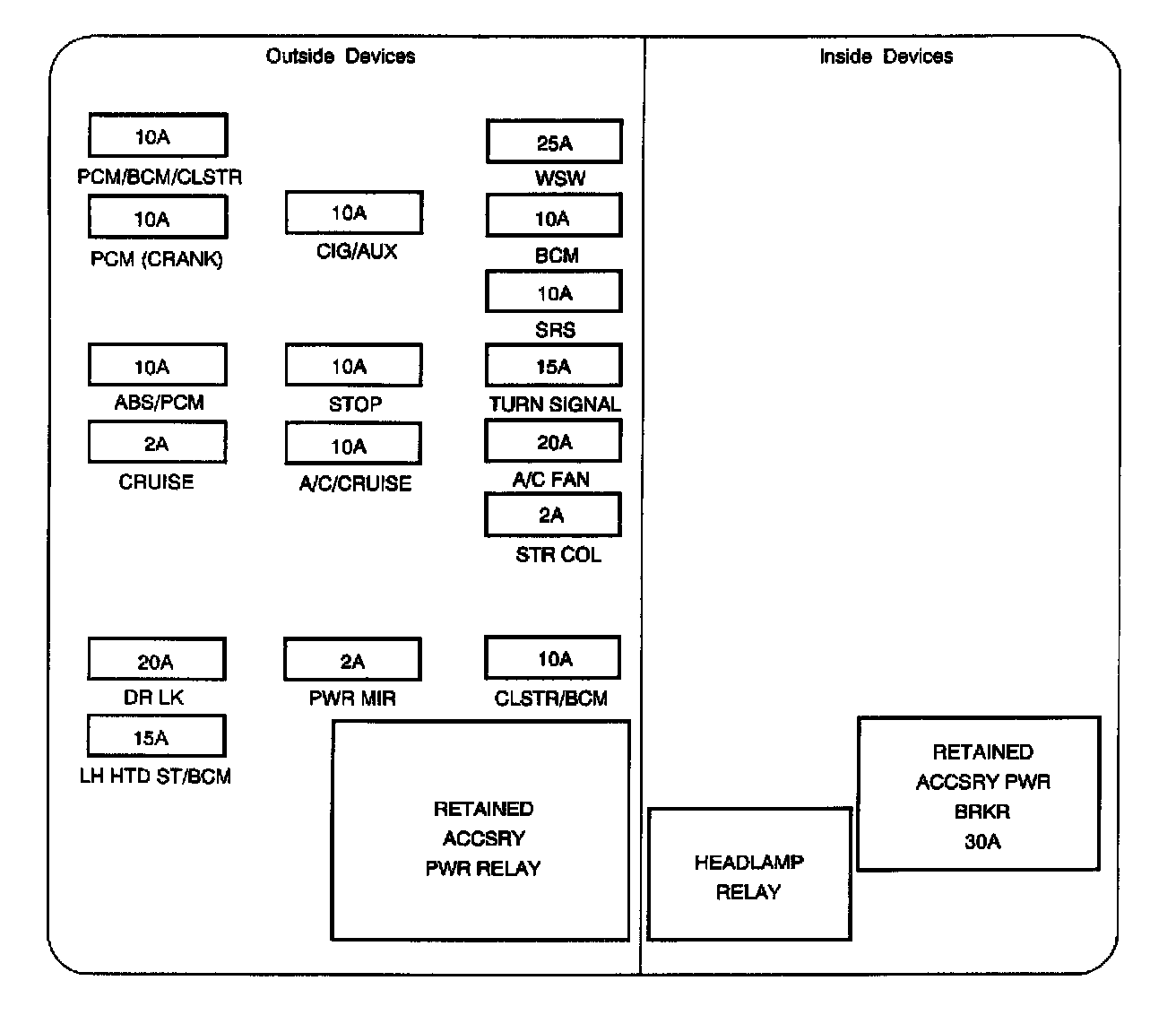

LH Instrument Panel Fuse Block Label:

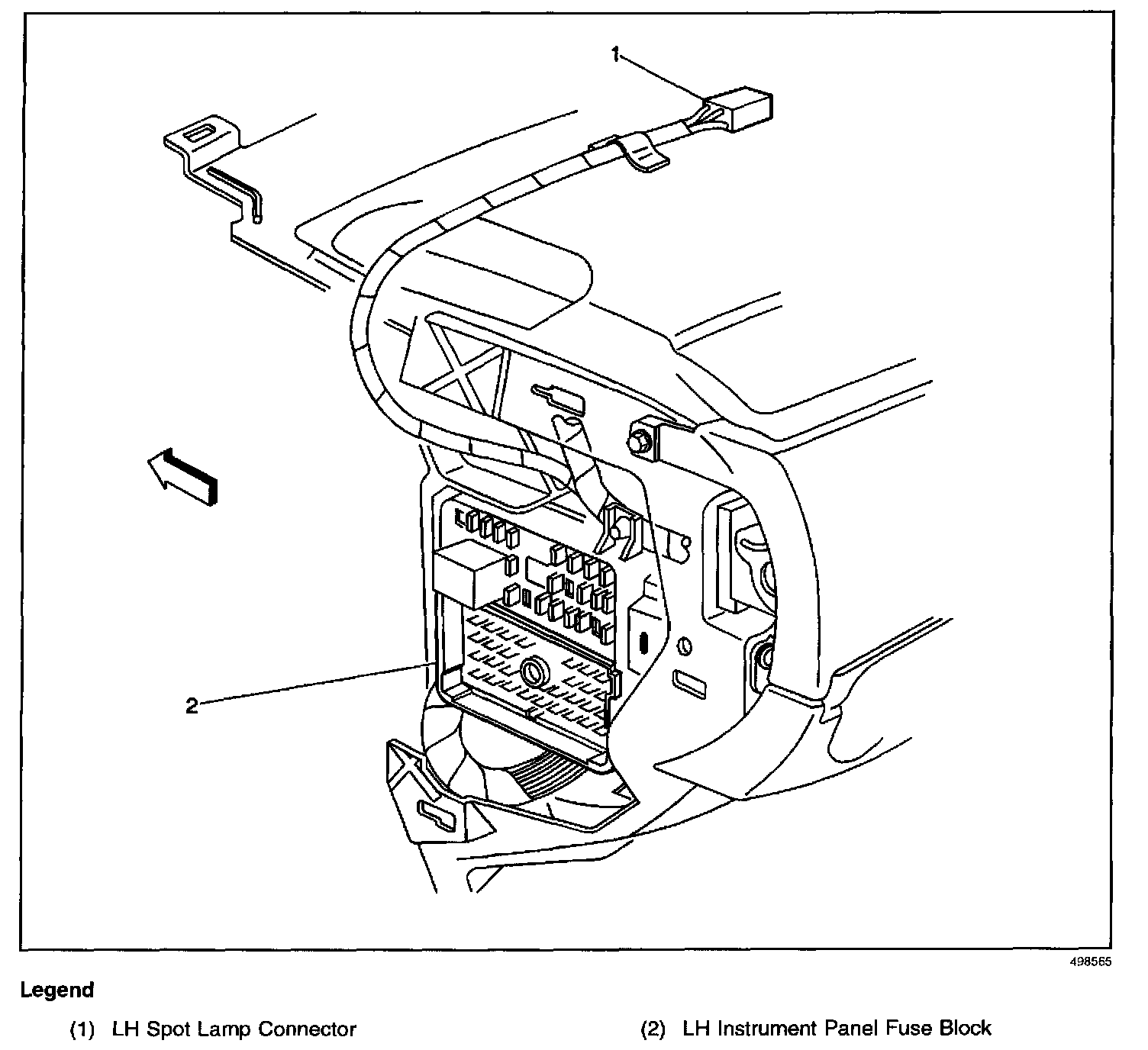

Locations View:





Inside the LH instrument panel fuse block.
