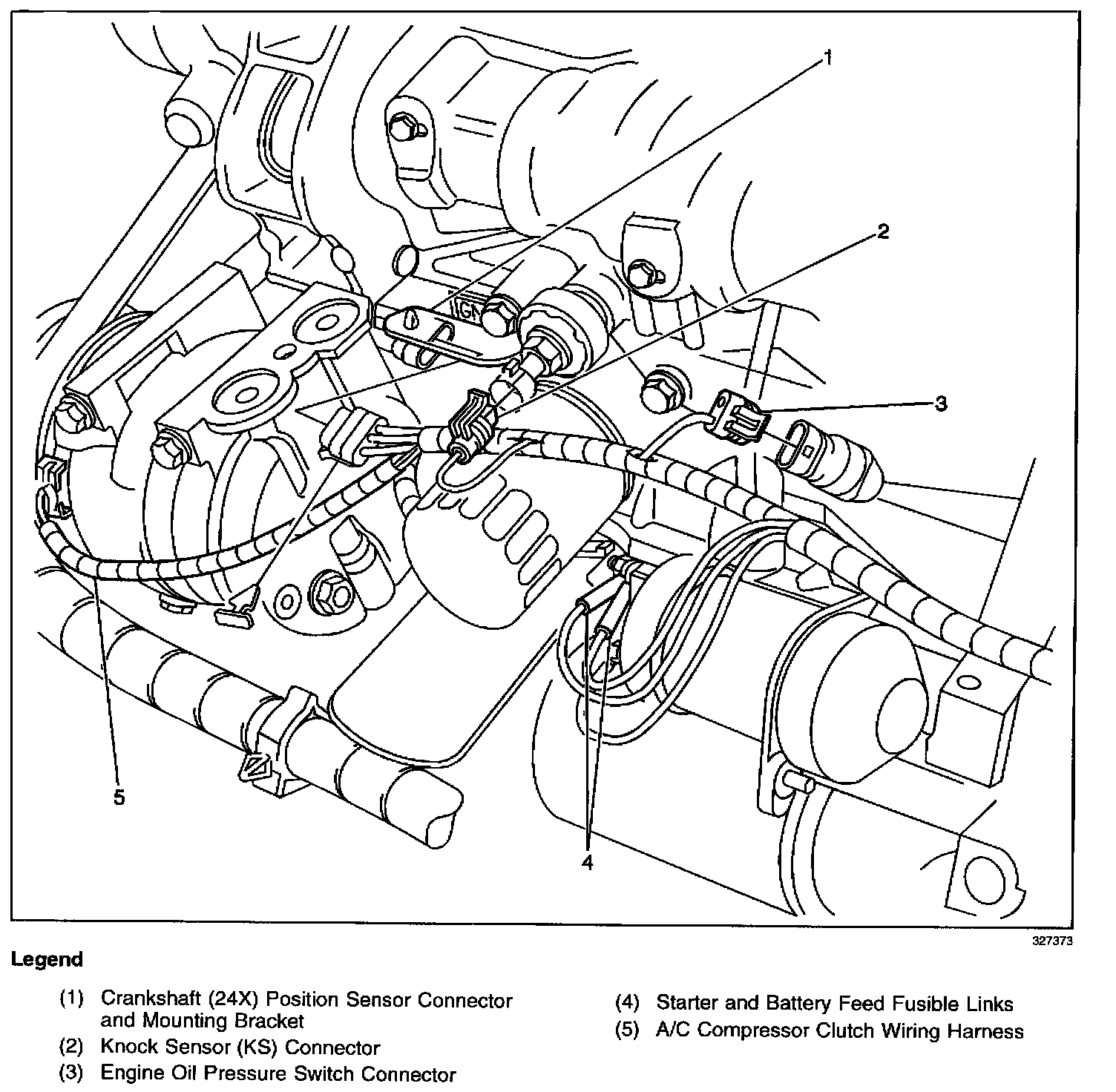

24X CKP Sensor Connector and Mounting Bracket
24X CKP Sensor Connector and Mounting Bracket
Left Front Of Engine:
Locations View:
