Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Injection Pump
Air Injection Pump

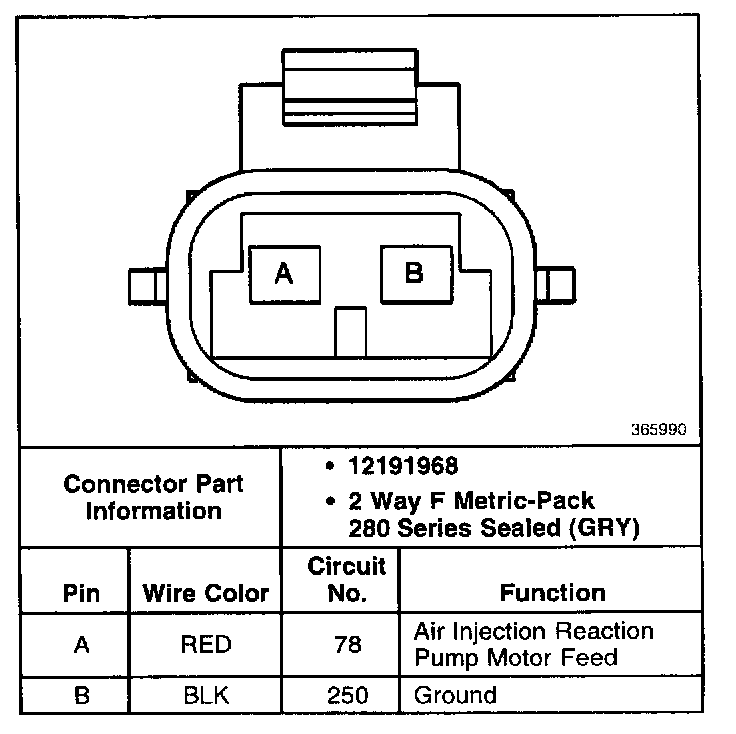

Secondary Air Injection Reaction (A.I.R.) Pump Motor:
