Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

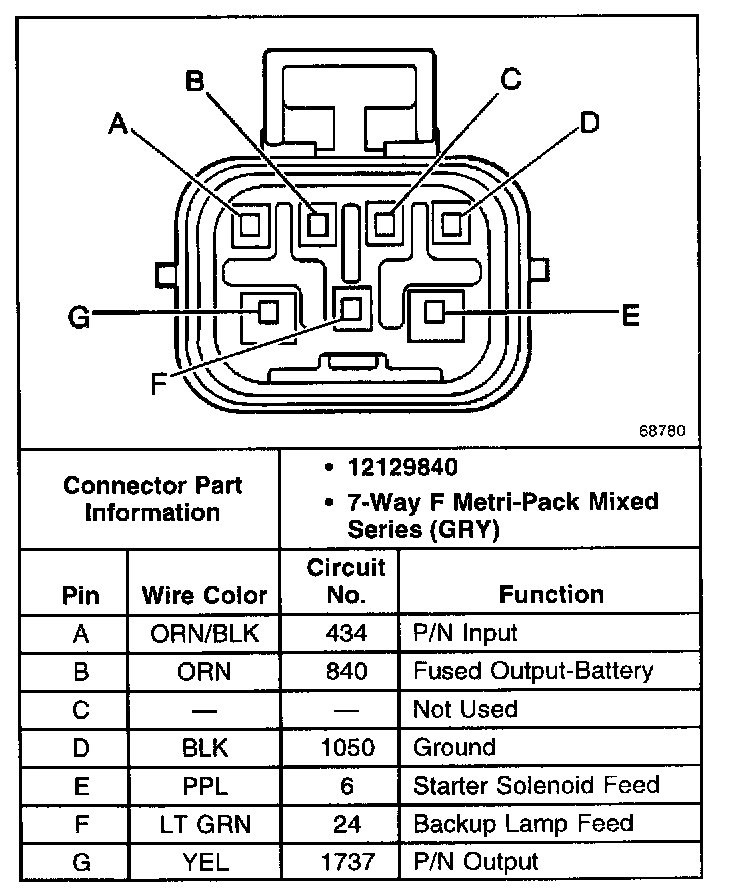

Park Neutral Position (PNP) Switch C1:
