Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

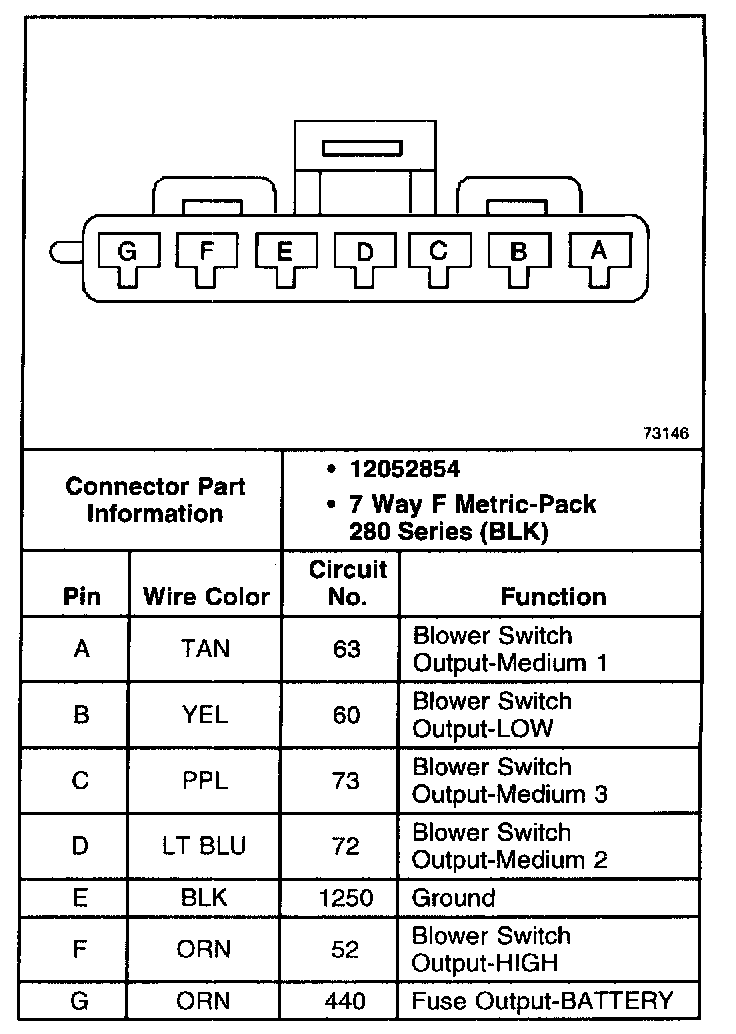

Blower Motor Control Module, C1
Blower Motor Control Module, C1
Blower Motor Control Module, C1:
