Door/Trunk Ajar Indicator/Lamp
>>

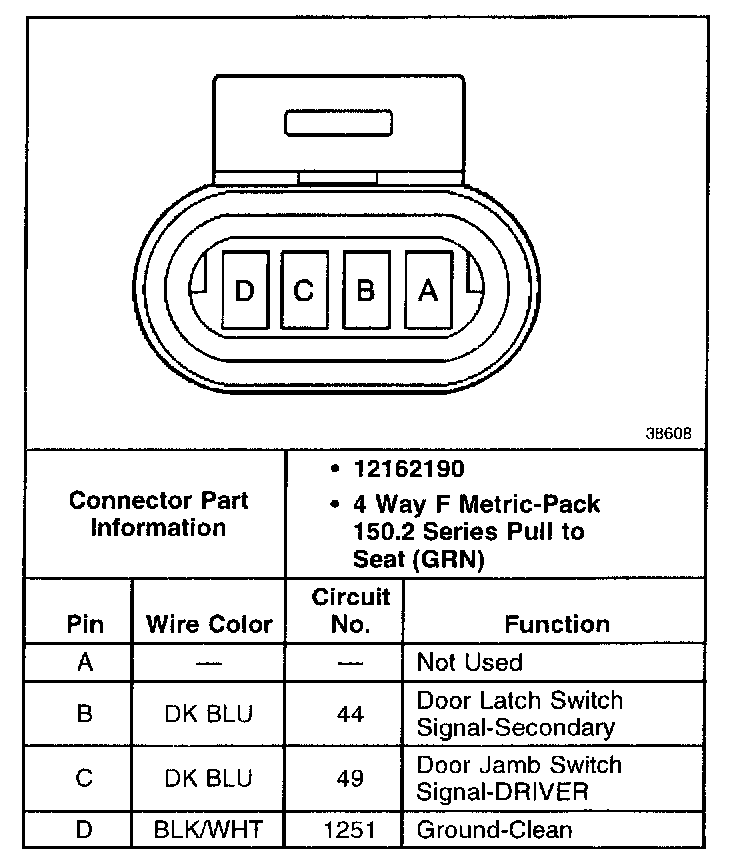

LF Door Ajar Switch Indicator, C1
LF Door Ajar Switch Indicator, C1
LF Door Ajar Switch Indicator, C1:
