Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door/Trunk Ajar Indicator/Lamp
>>
RR Door Ajar Switch Indicator, C1
RR Door Ajar Switch Indicator, C1

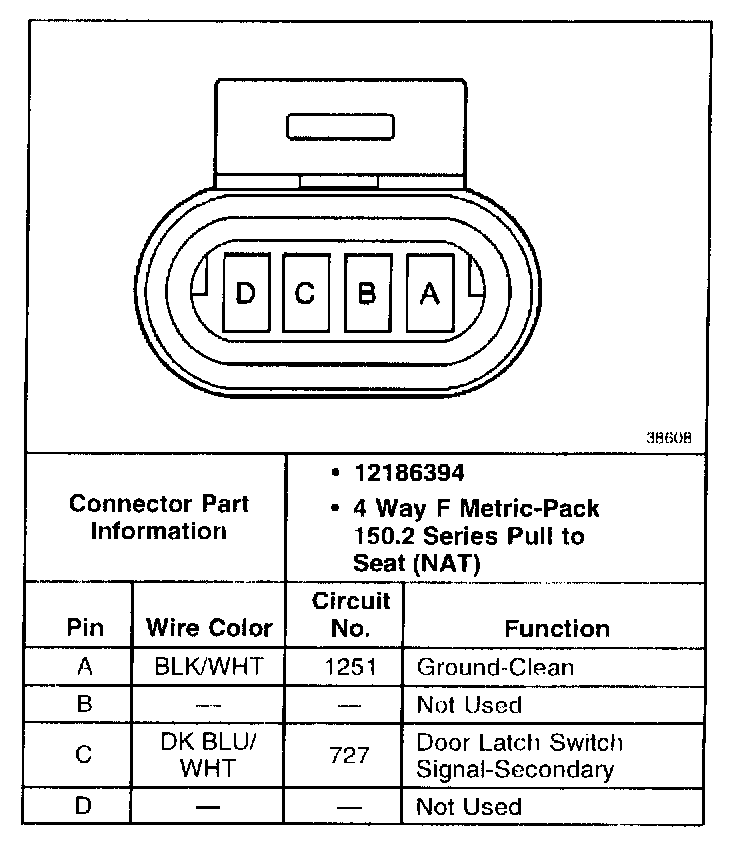

RR Door Ajar Switch Indicator, C1:
