Chevrolet
>>
2000
>>
Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Center Mounted Brake Lamp
Center Mounted Brake Lamp

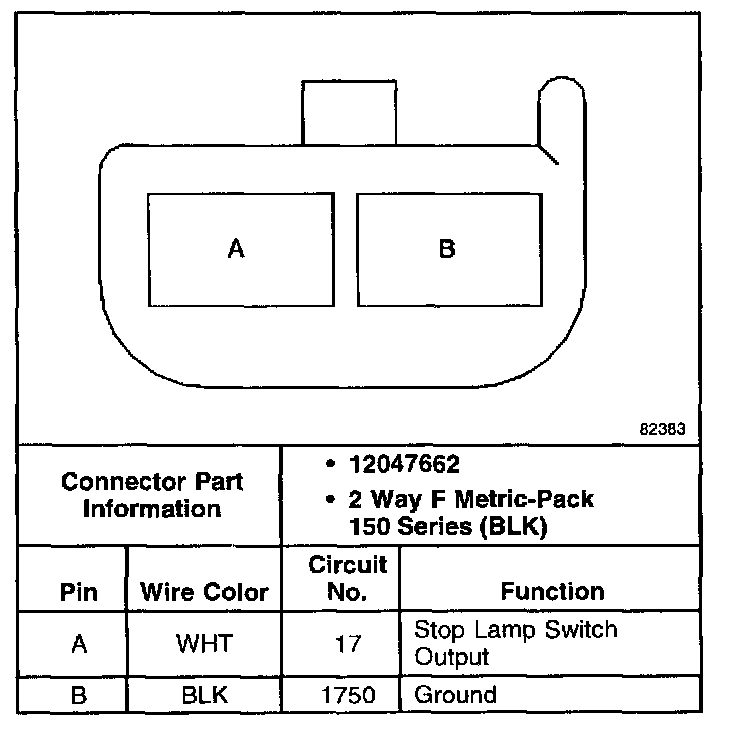

Center High Mounter Stop Lamp (CHMSL):
