Oxygen Sensor
>>

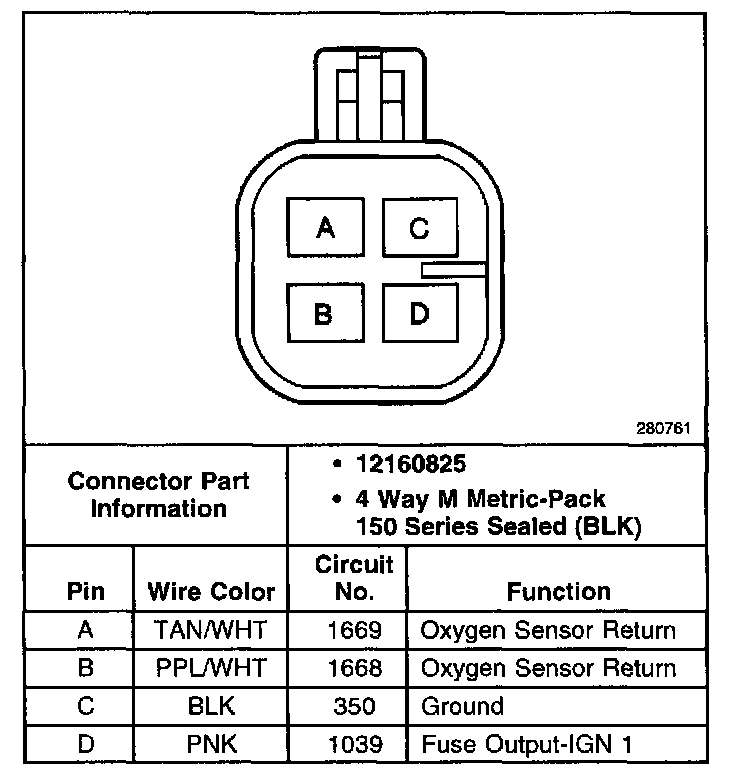

Heated Oxygen Sensor (HO2S 2)
Heated Oxygen Sensor (HO2S 2)
Heated Oxygen Sensor (HO2S2) 2:
