Home >> Chevrolet >> 2000 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Radio C1 (4 - Door)

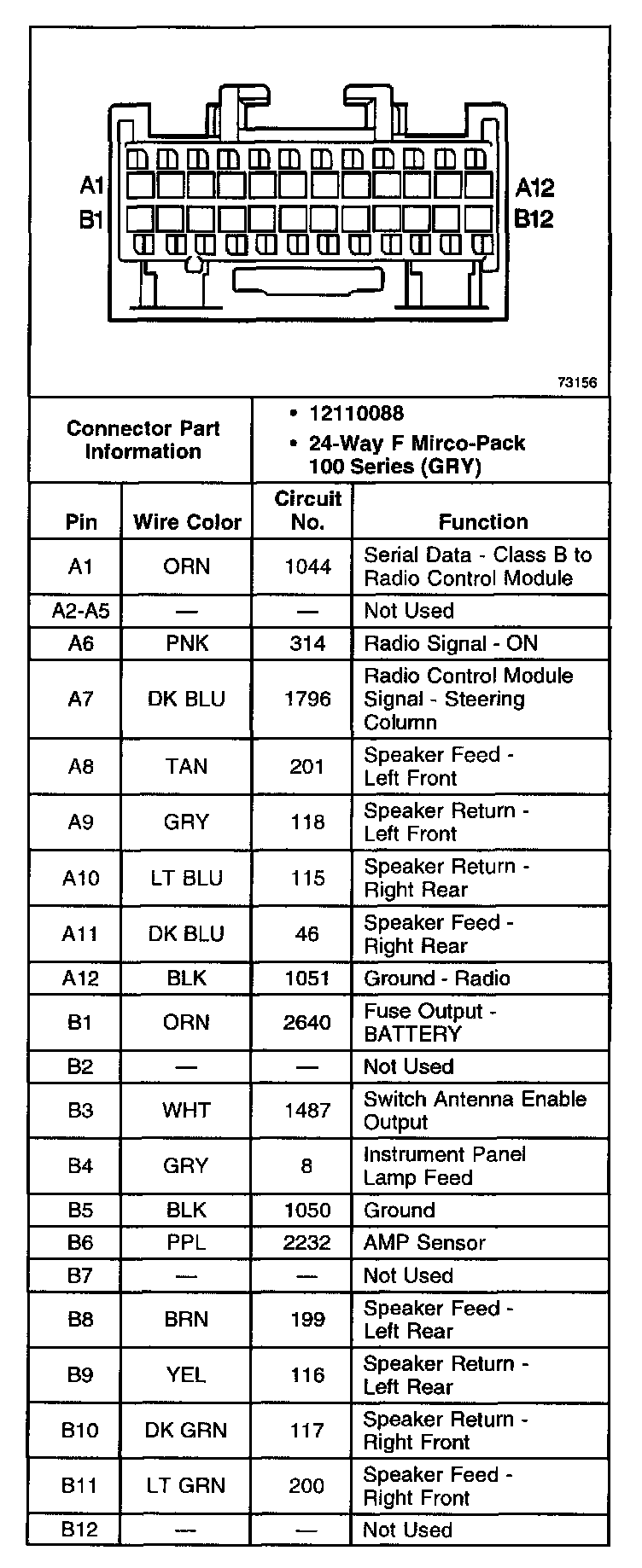

Radio C1 (4 - Door)

Radio, C1 (4-Door):
