Accessory Delay Module

Retained Accessory Power (RAP) Schematics: Power And Grounds:

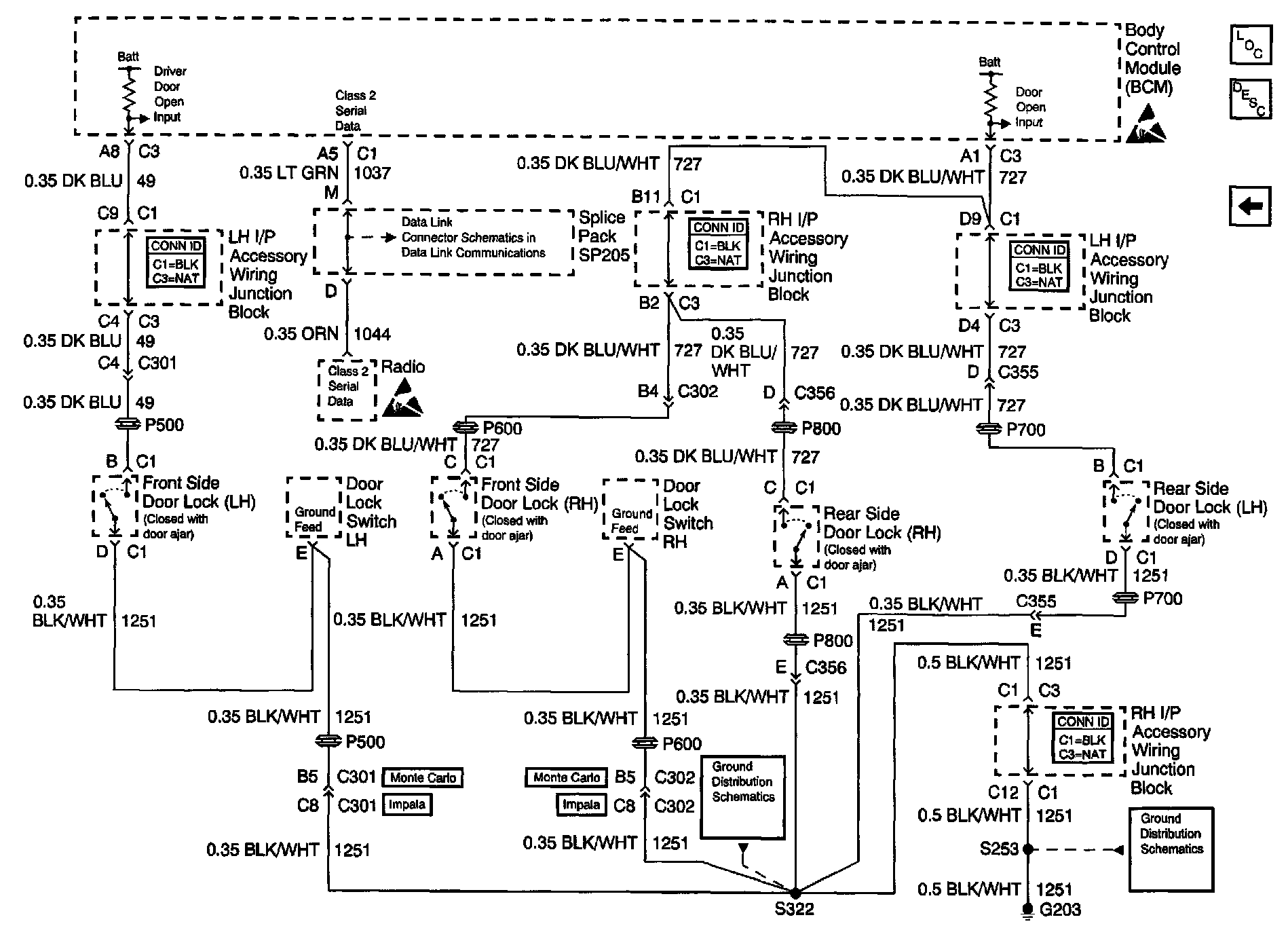

Retained Accessory Power (RAP) Schematics: Door Inputs:
