Home >> Chevrolet >> 2000 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Indicators and Serial Data

Indicators and Serial Data

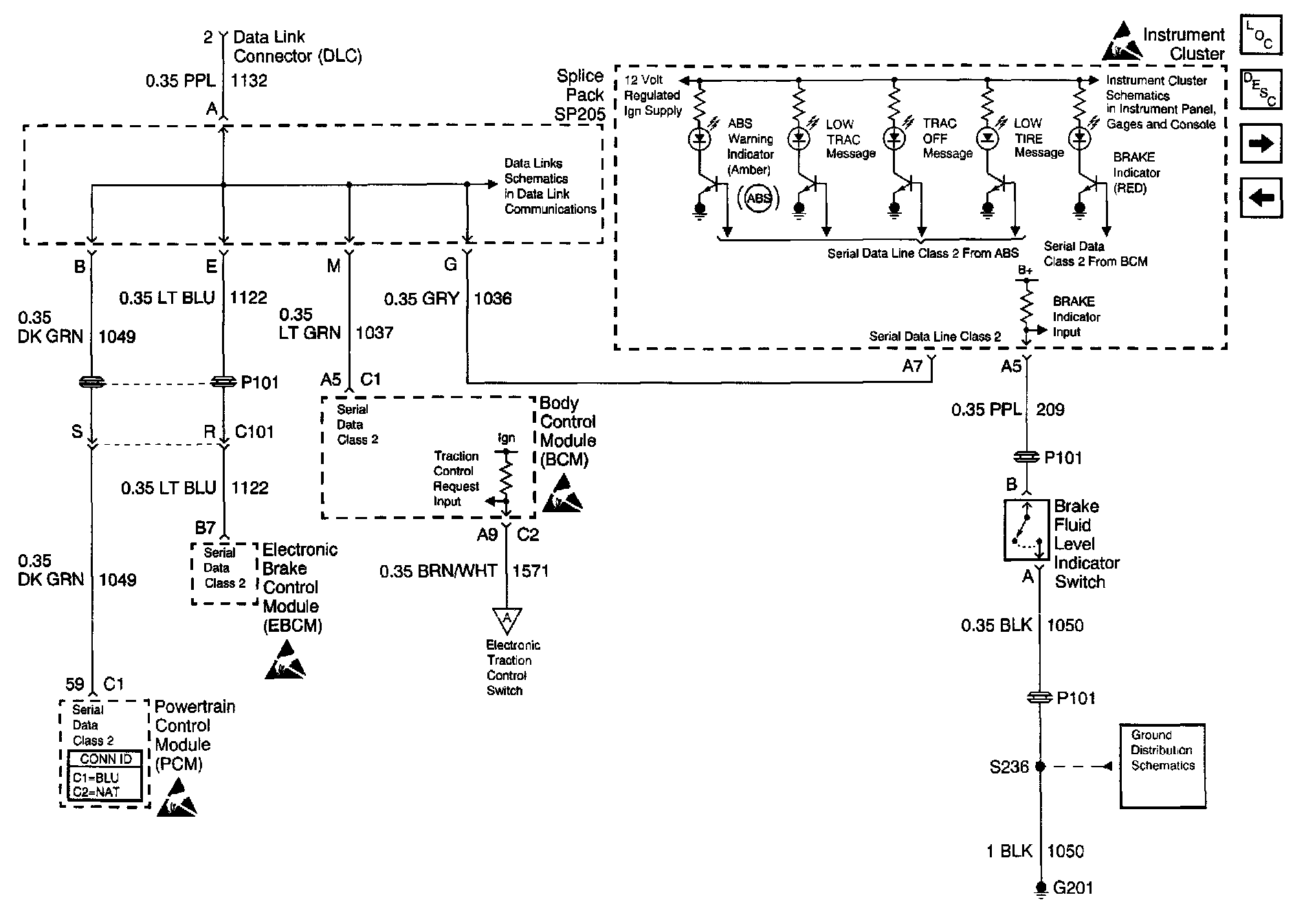

ABS Schematics: Indicators And Serial Data:
