PWR, HDLP SW, DLC, Radio Antenna Module, Rear WDO & GRD
PWR, HDLP SW, DLC, Radio Antenna Module, Rear WDO & GRD

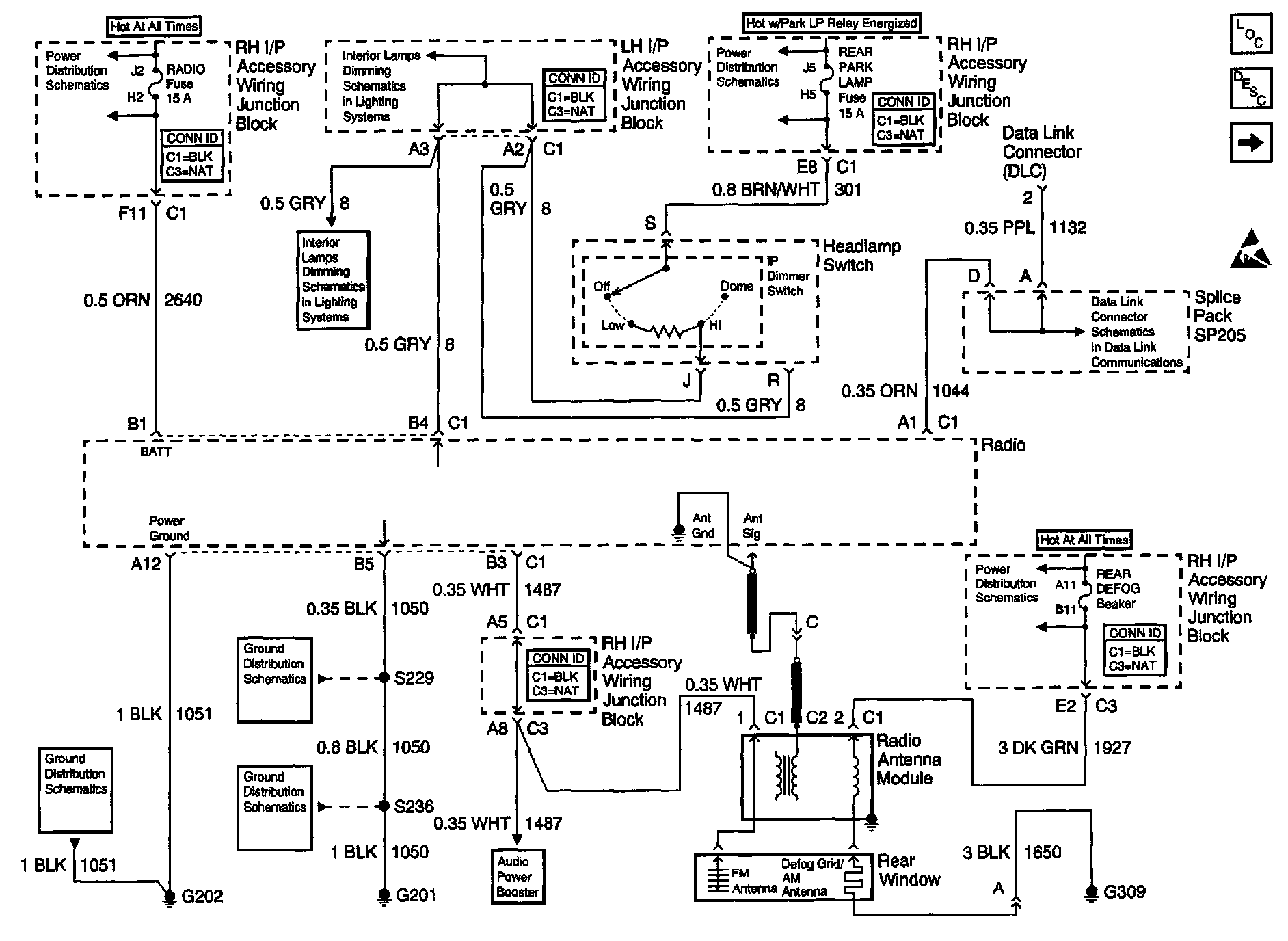

Radio/Audio System Schematics: Power, Head Lamp Switch, DLC, Radio Antenna Module, Rear Window And Ground:
