UQ3 Speaker System (W/ SEO)

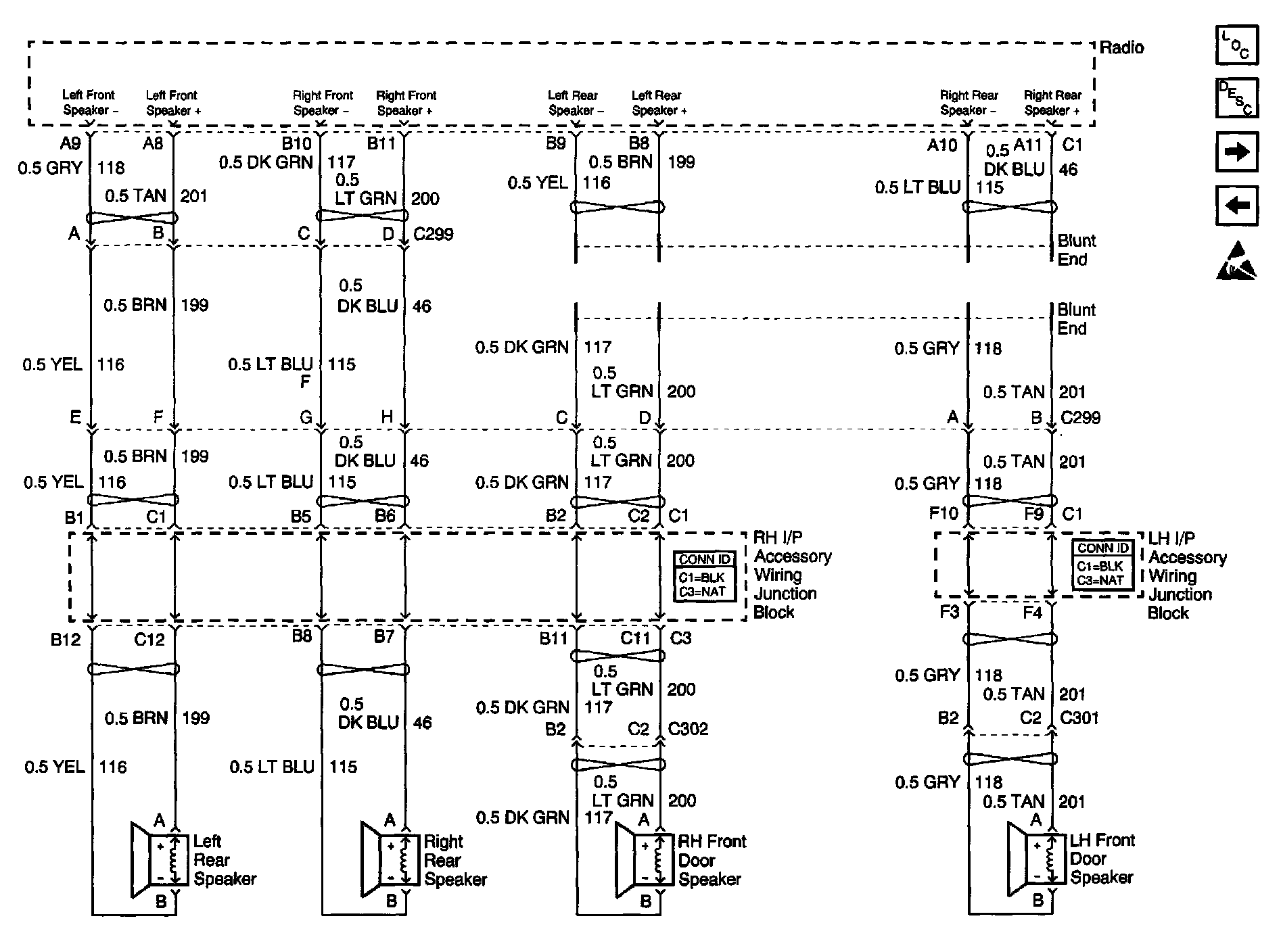

Radio/Audio System Schematics: UQ3 Speaker System (W/SEO):

RPO UQ3: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
