Home
>>
Chevrolet
>>
2000
>>
Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>

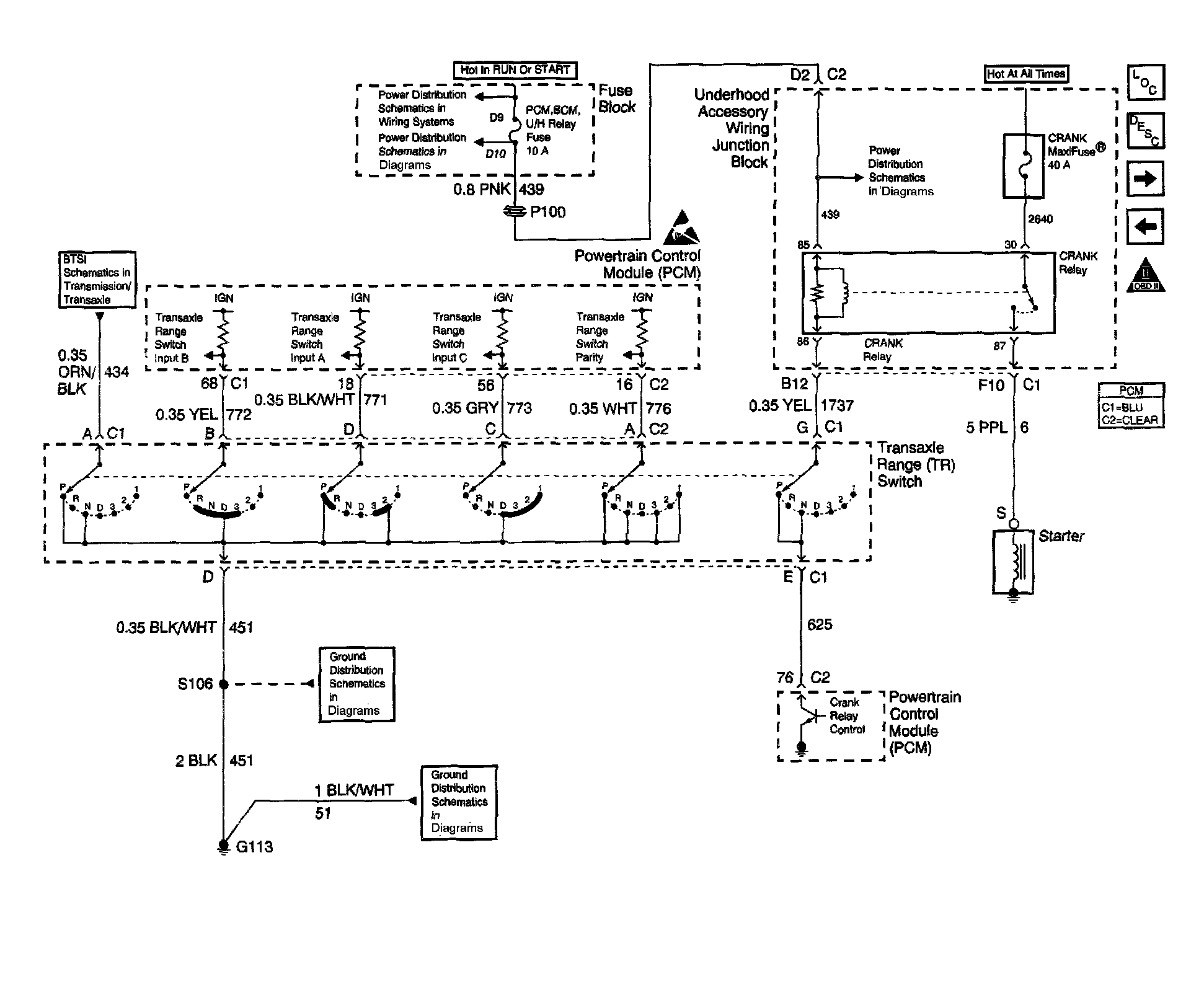

Transmission Controls Schematics (Power, Ground and Crank Relay
Transmission Controls Schematics (Power, Ground and Crank Relay
