Engine

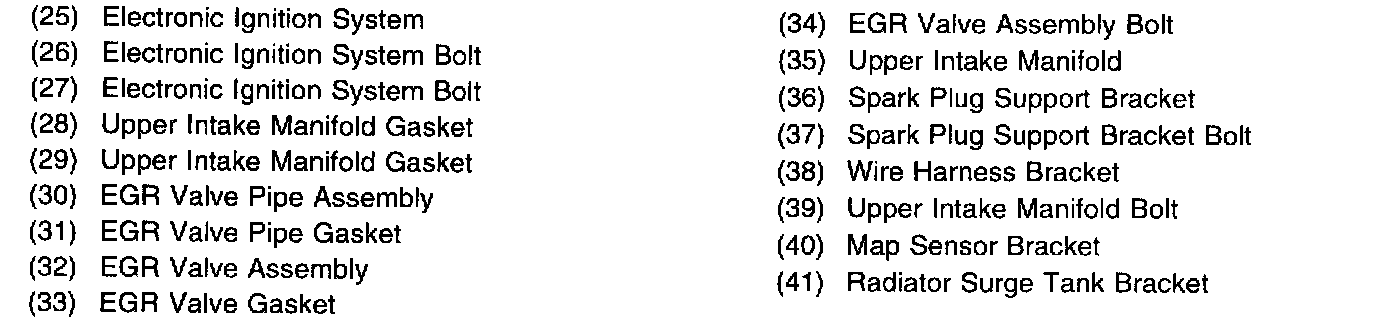

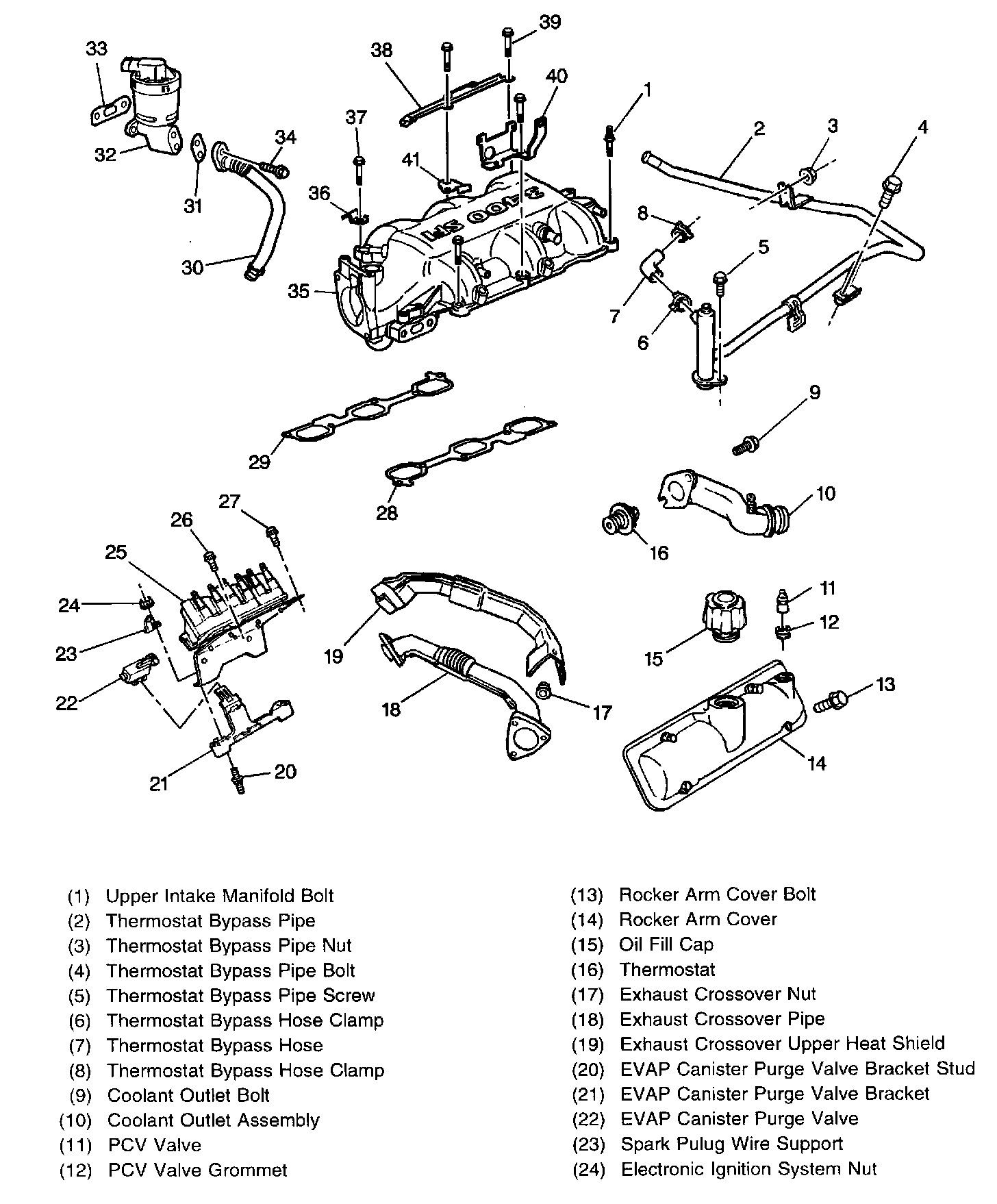

Upper Intake Manifold and Components








Lower Intake Manifold, Cylinder Head, and Components

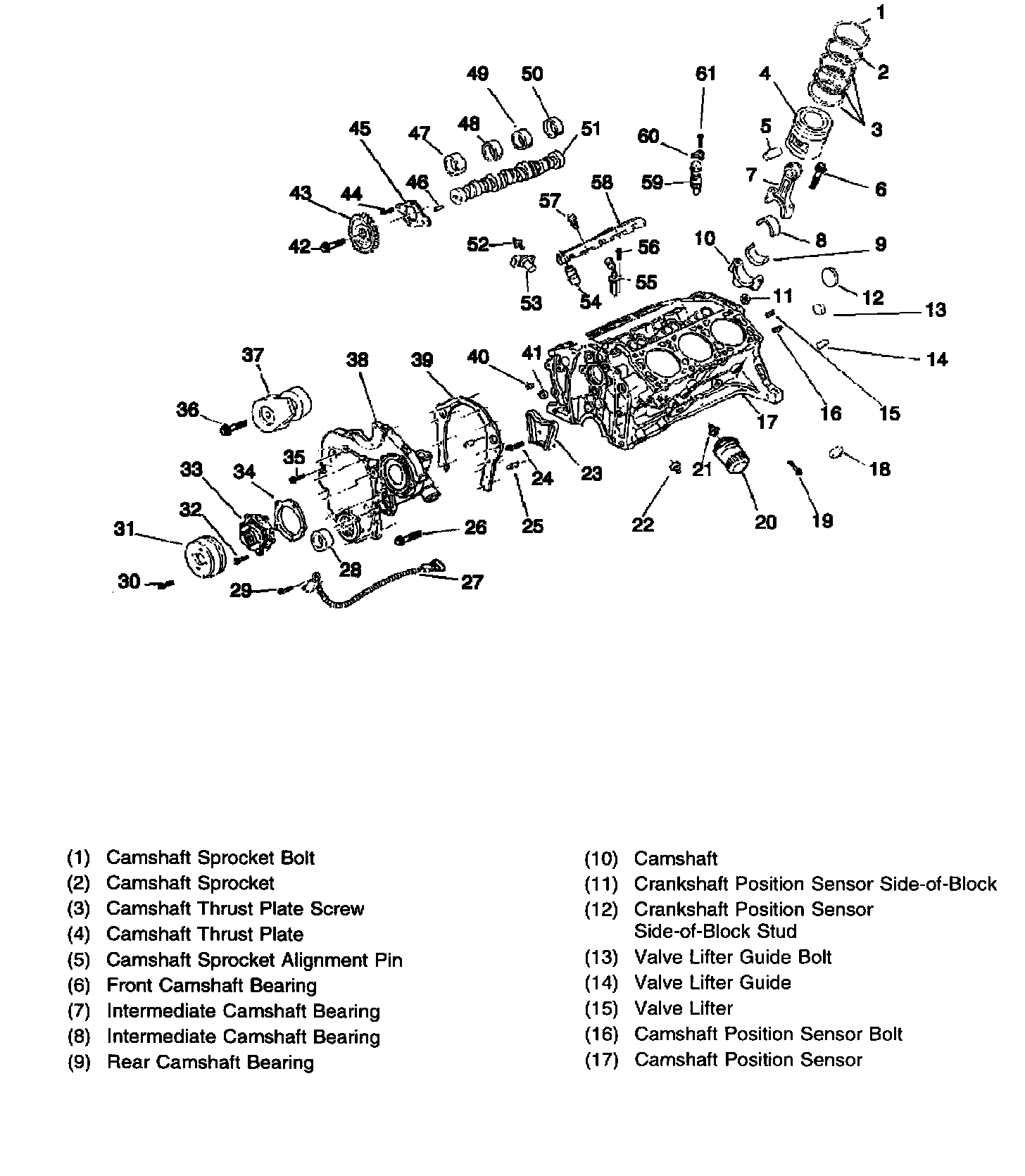

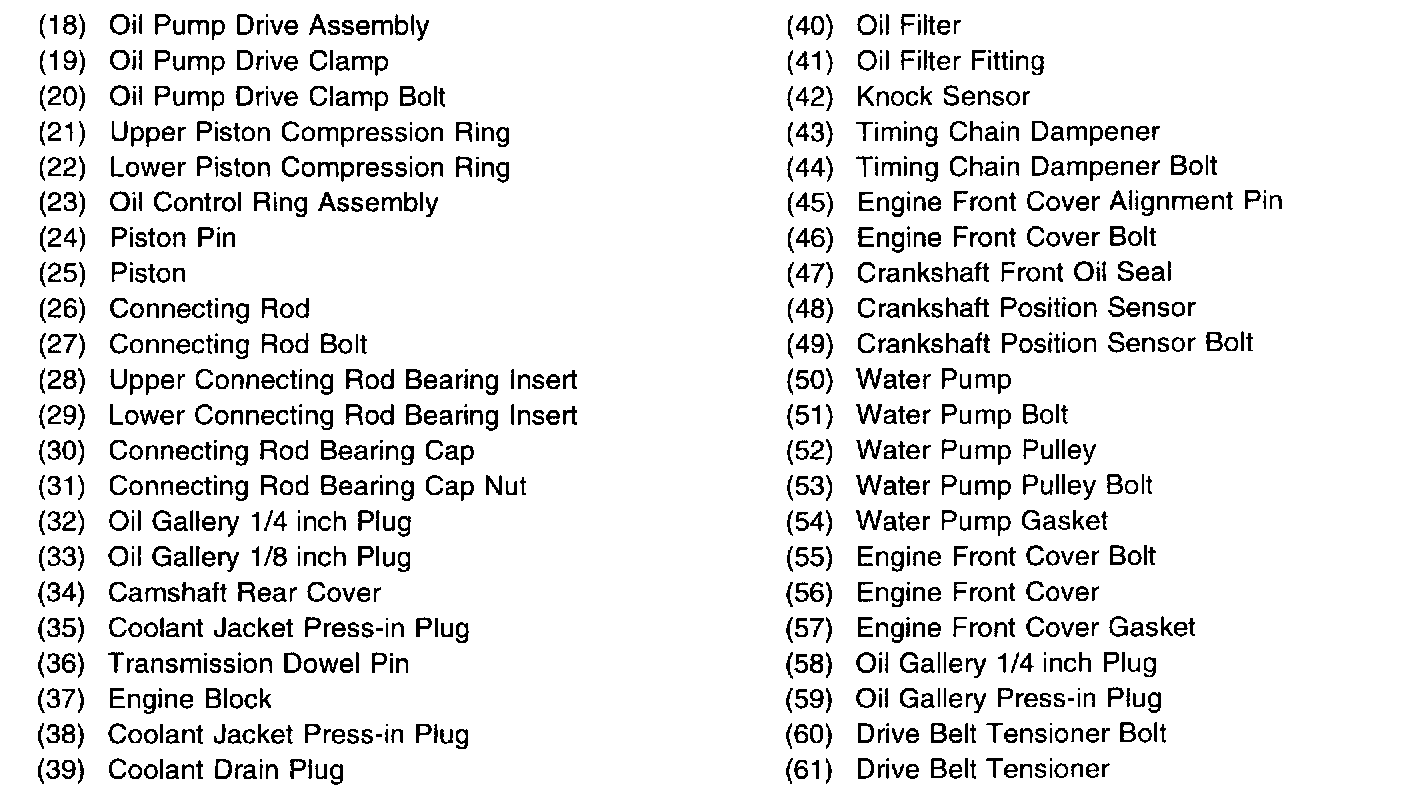

Engine Block and Components

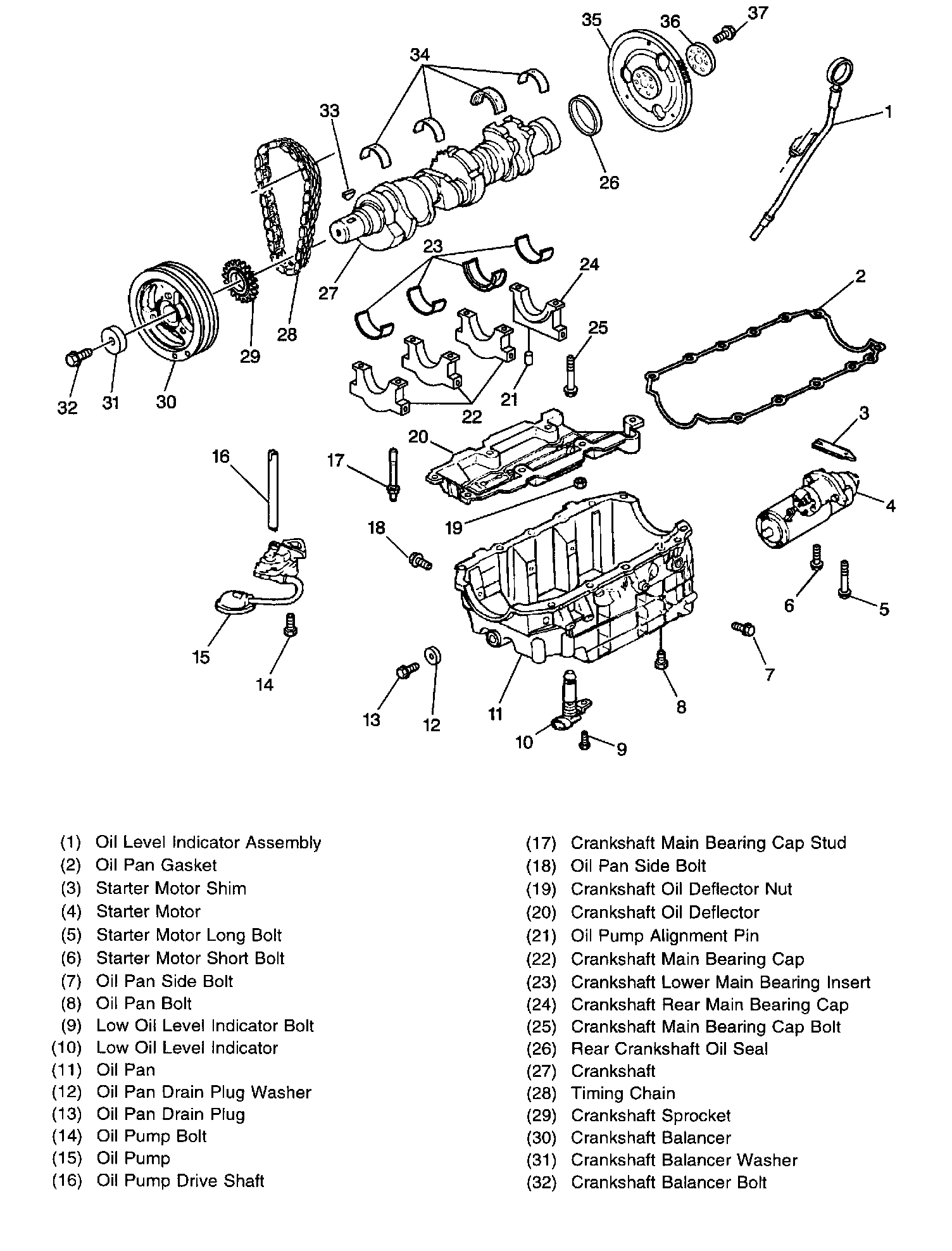

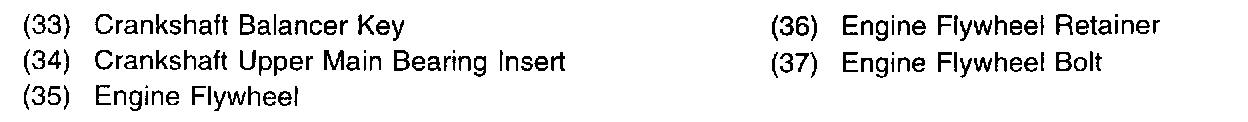

Crankshaft and Components
