Behind Left Center of Instrument Panel (2-Door)

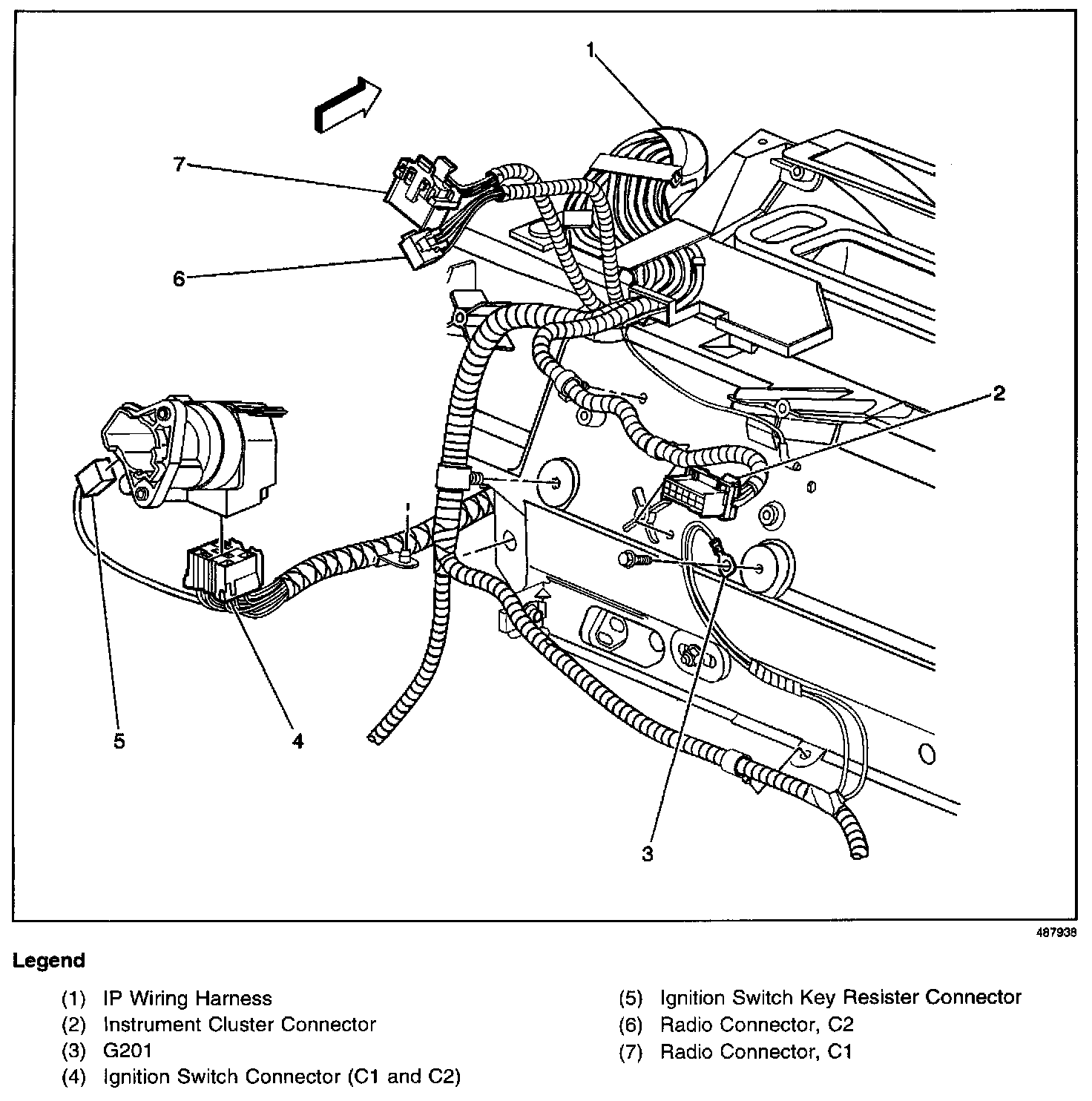

Harness Routing Views (Behind Left Center Of Instrument Panel (2-Door)):
