Front of Vehicle-Forward Lamp Harness

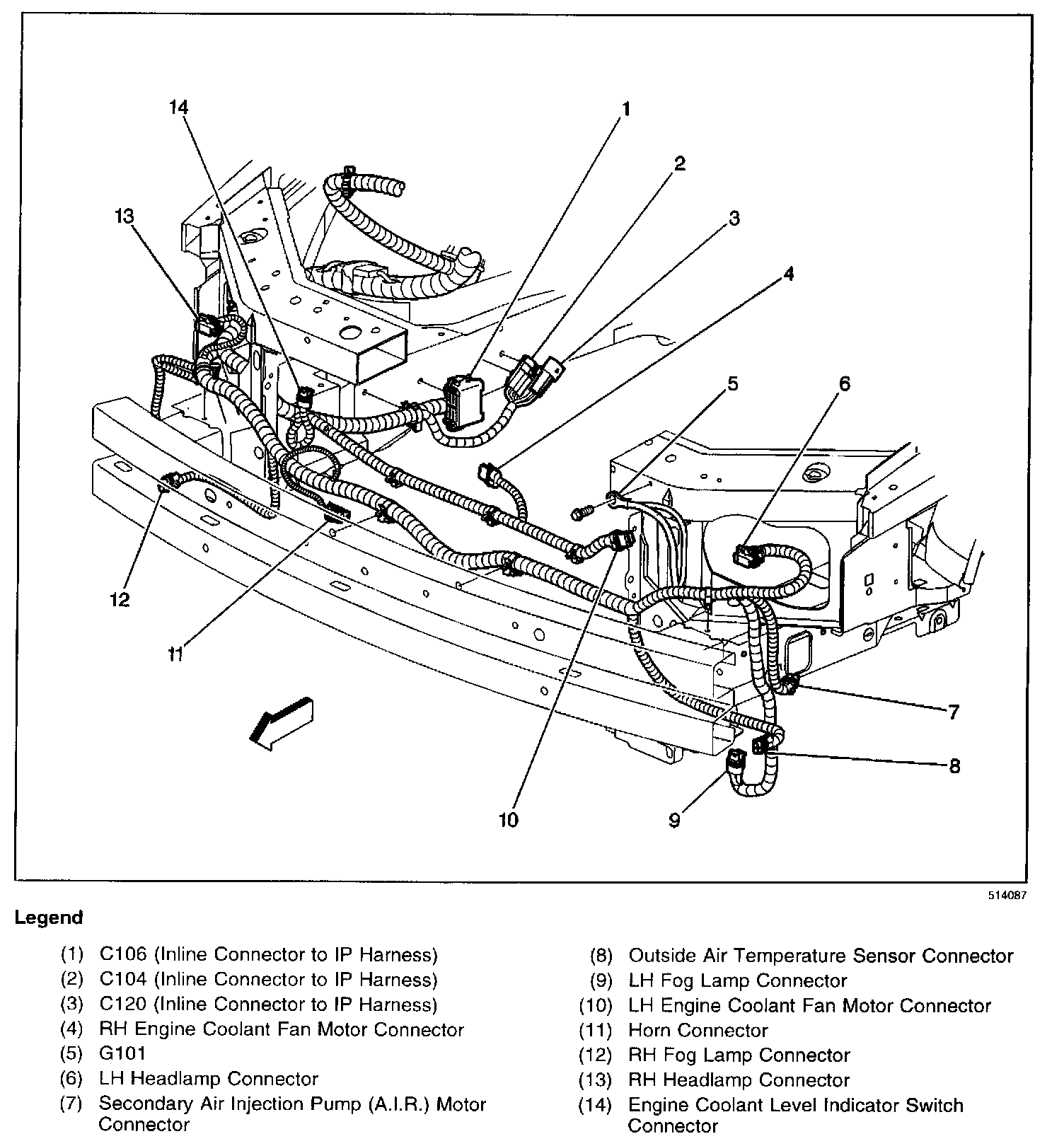

Harness Routing Views (Front Of Vehicle-Forward Lamp Harness):
