Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Inside Right Side of Rear Compartment (2-Door)
Inside Right Side of Rear Compartment (2-Door)

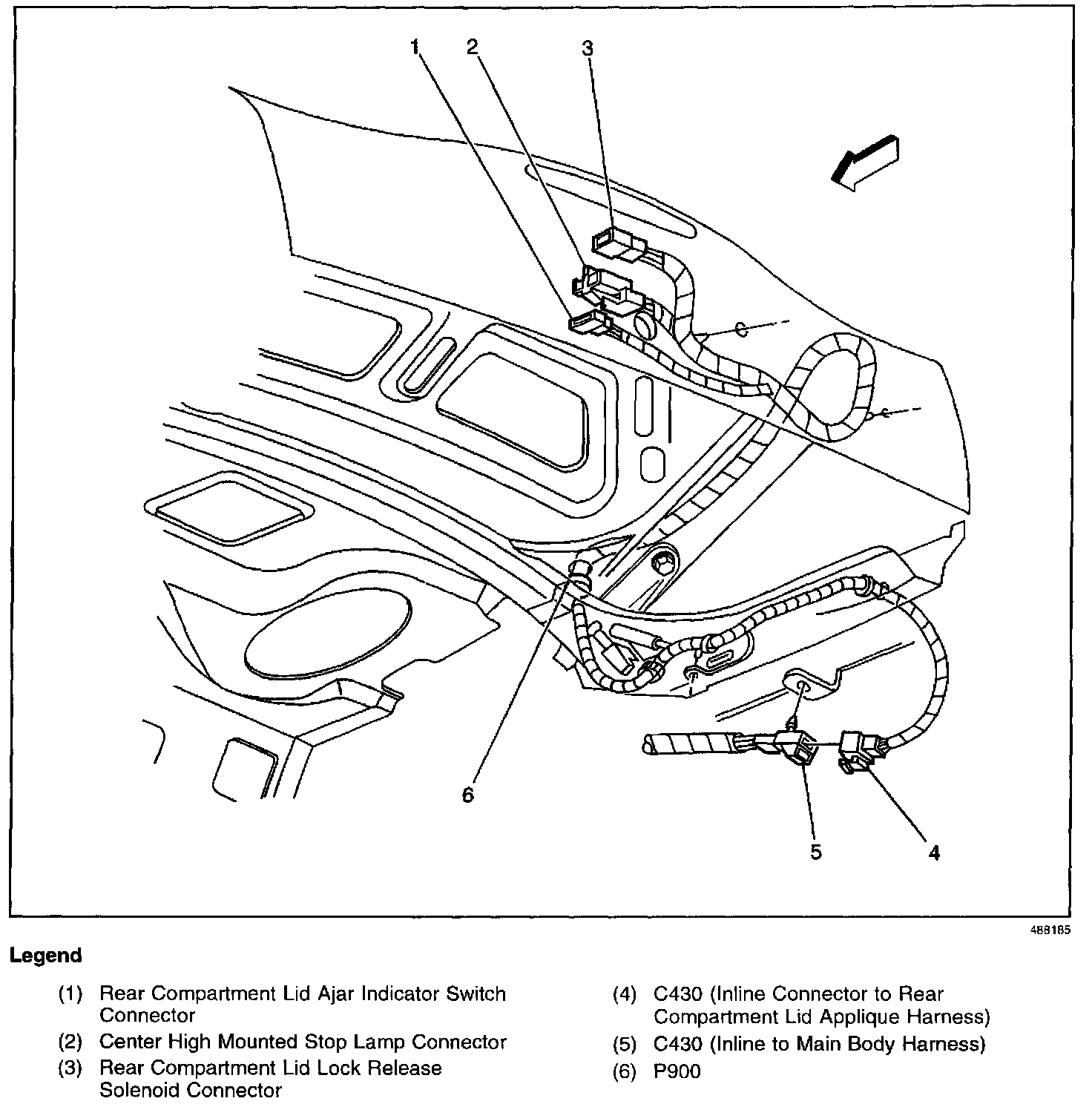

Harness Routing Views (Inside Right Side Of Rear Compartment (2-Door)):
