Home
>>
Chevrolet
>>
2000
>>
Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Left Front Door (2-Door)
Left Front Door (2-Door)

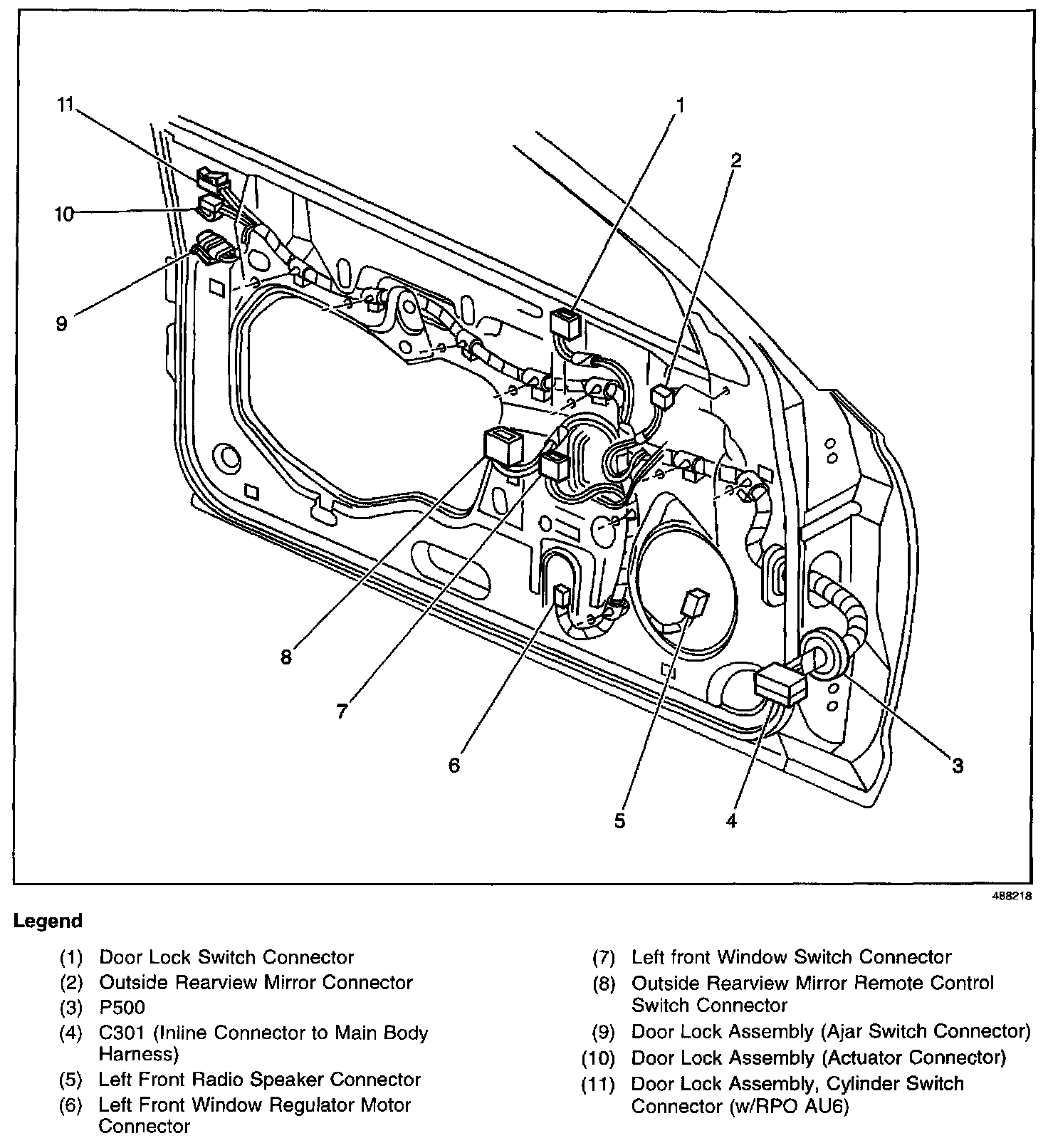

Harness Routing Views (Left Front Door (2-Door)):
Harness Routing Views (Left Front Door (2-Door)):
