Left Side of Passenger Compartment (2-Door)
Left Side of Passenger Compartment (2-Door)

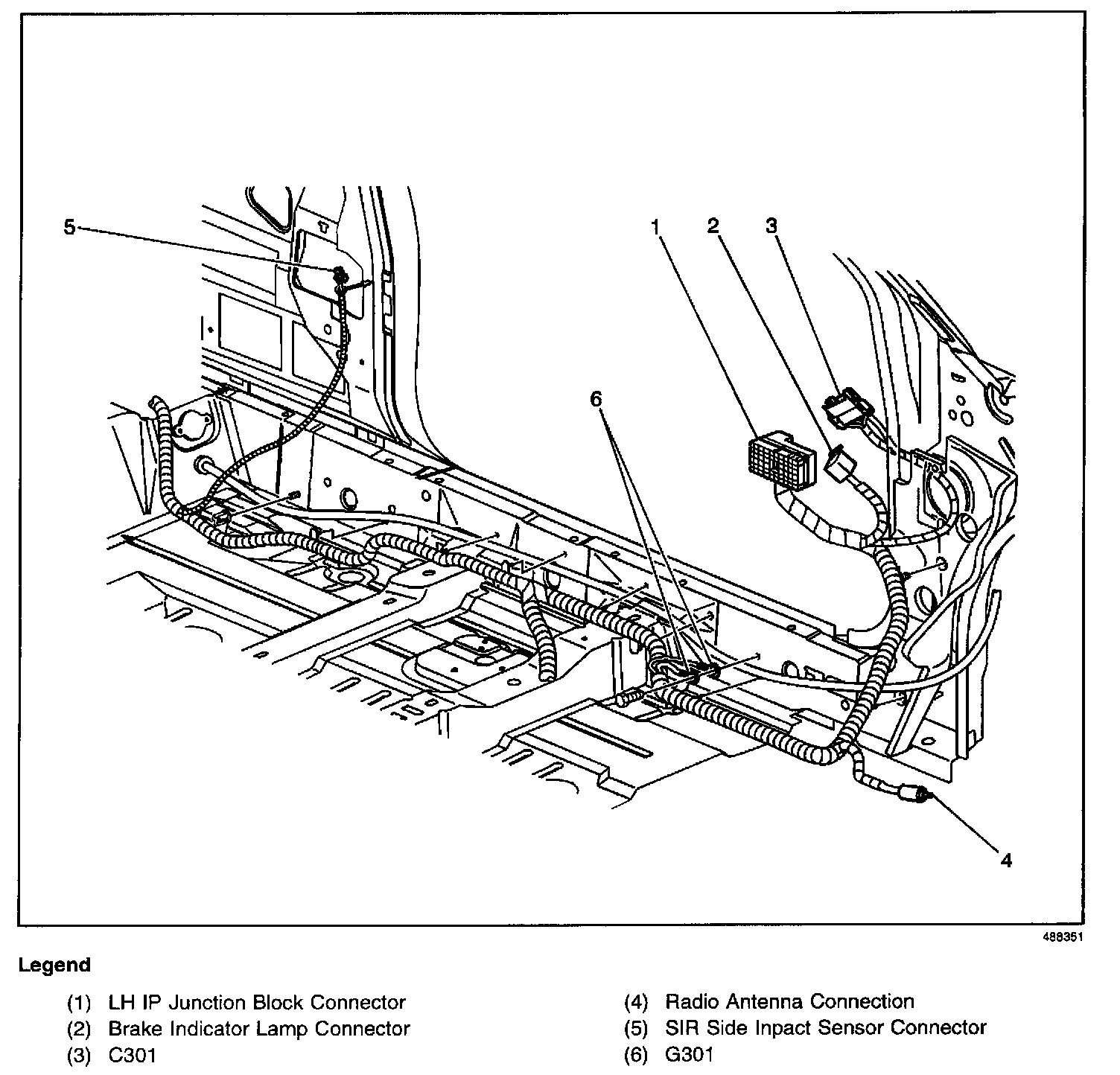

Harness Routing Views (Left Side Of Passenger Compartment (2-Door)):
