Home
>>
Chevrolet
>>
2000
>>
Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Lower Left Front of Engine, Mounted to Left Main Frame Rail
Lower Left Front of Engine, Mounted to Left Main Frame Rail

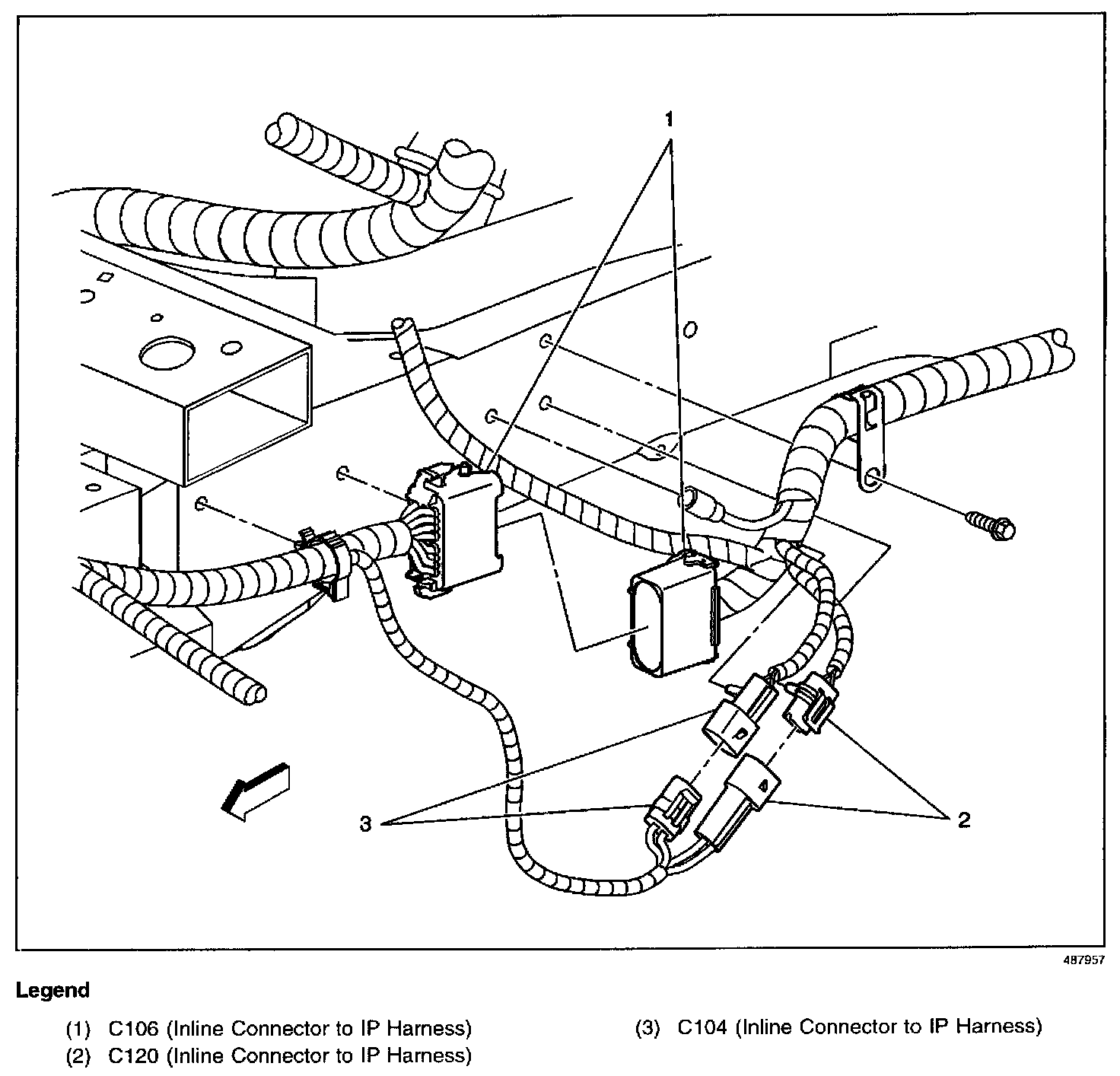

Harness Routing Views (Lower Left Front Of Engine, Mounted To Left Main Frame Rail):
