Home >> Chevrolet >> 2000 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Harness >> Right Front Door (4-Door)

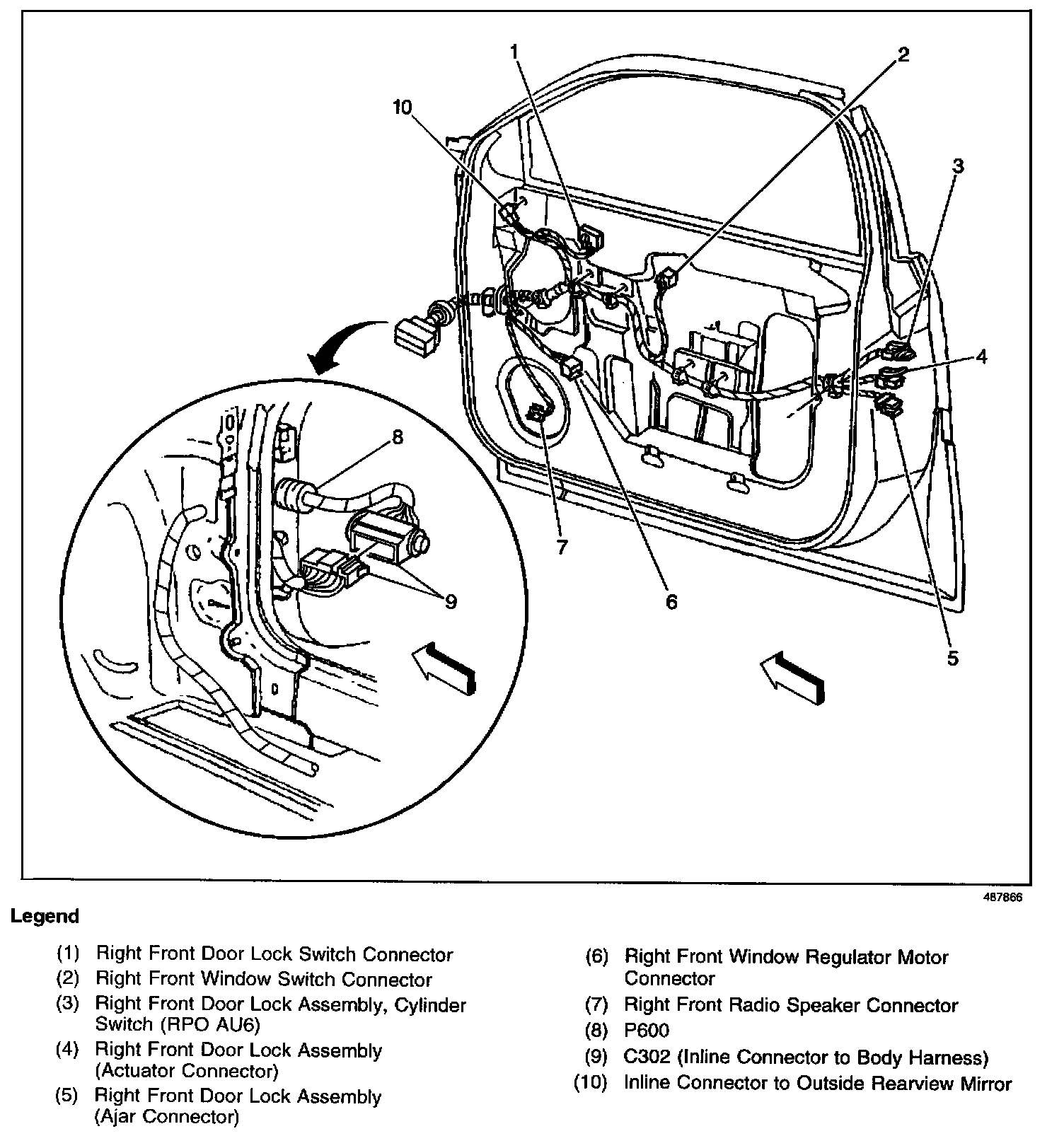

Right Front Door (4-Door)

Harness Routing Views (Right Front Door (4-Door)):
